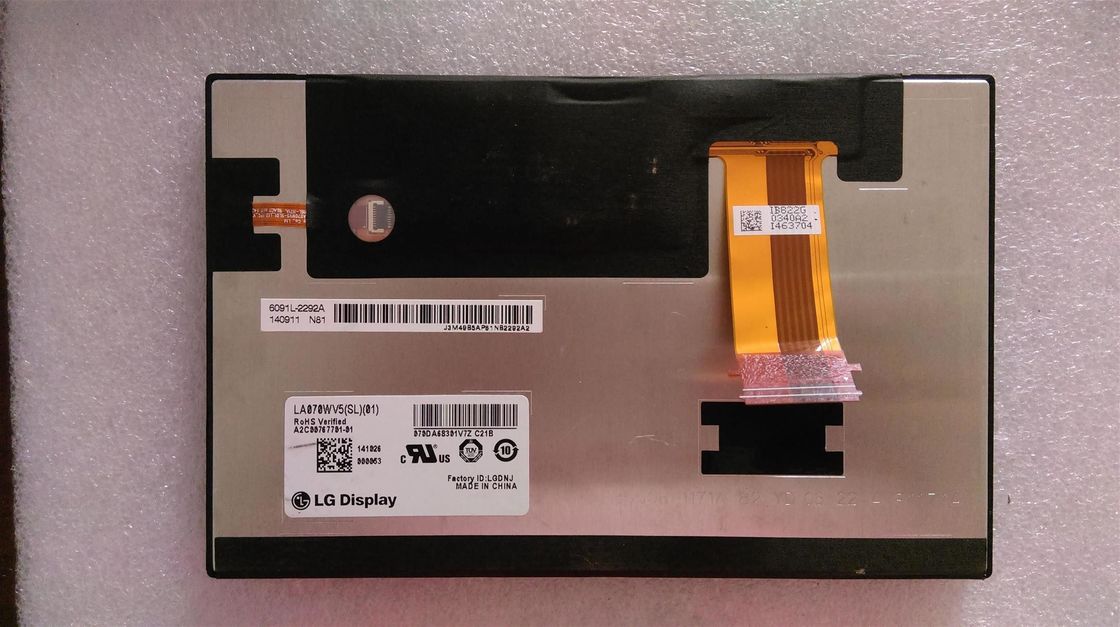

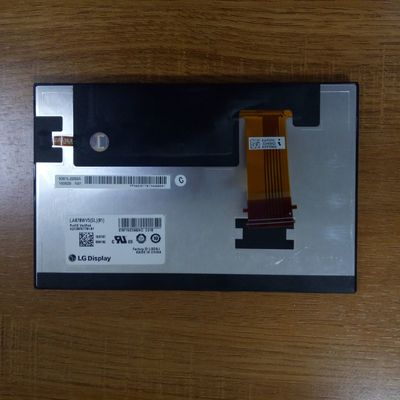

Product Details:
|
| MODEL NUMBER: | LA070WV5-SL01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 580CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×480 [WVGA] 133PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -40 ~ 95 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | 580cd/m2 TFT LCD Panel,TFT LCD Panel 133PPI WVGA,800×480 WLED Tft Lcd Screen |
||
| Basic Info : | Panel Brand | Panel Model | LA070WV5-SL01 | |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LA070WV5 (SL)(01) | |
| Reliability : | Operating Temp. | -40 ~ 95 °C | Storage Temp. | -40 ~ 95 °C |
| RoHS State | Vibration Rating | 3.0G (29.4 m/s²) |
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0635×0.1905 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1905×0.1905 mm (H×V) [133PPI] | |
| Mechanical Size : | Display Area | 152.4×91.44 mm (H×V) | Bezel Area | - |
| Outline Dim. | 168.19×107.94 mm (H×V) | Outline Depth | 8.1 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Other Features : | Weight | 180/185g (Typ./Max.) | Surface | Antiglare, Antireflection |
| Basic Information : | Brightness | 580 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Optical Mode | AH-IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 30 (Max.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.315; Wy:0.350 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6245K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 65% | sRGB | 83% coverage |
| Adobe RGB | 65% coverage | DCI-P3 | 68% coverage | |
| Rec.2020 | 49% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 7S2P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 21.3±2.1V | Current Input | 65/70mA (Typ./Max.) | ||
| Consumption | 2.78/3.33W (Typ./Max.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 100/300/480mA (Min./Typ./Max.) | ||
| Consumption | 1.25/1.58W (Typ./Max.) | |||||

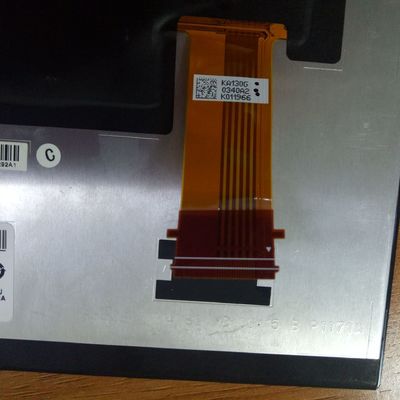

| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 40 pins | 1 pcs | ||||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 36 pcs / box | - | 572×372×156 mm |
