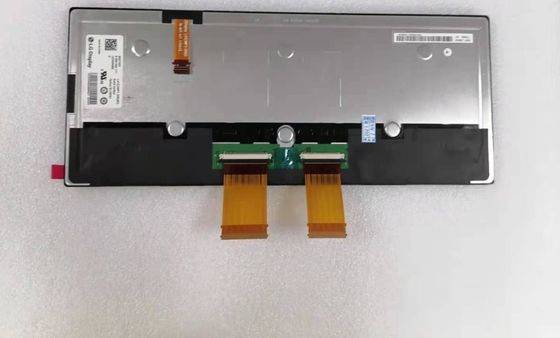

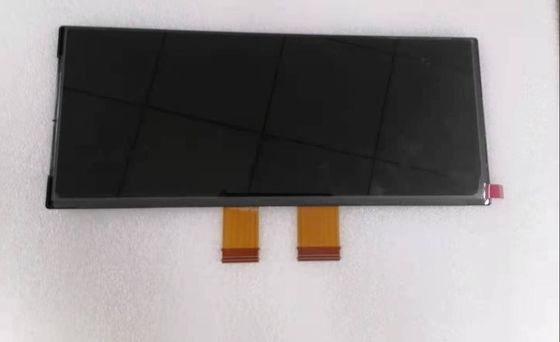

12.3" 167PPI RGB TFT LCD Panel 420cd/m2 LA123WF4-SR05 1920×720 LCM

Large Image : 12.3" 167PPI RGB TFT LCD Panel 420cd/m2 LA123WF4-SR05 1920×720 LCM

Product Details:

Place of Origin:	JAPAN
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LA123WF4-SR05

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	2000PCS

Contact Now

12.3" 167PPI RGB TFT LCD Panel 420cd/m2 LA123WF4-SR05 1920×720 LCM

Description

MODEL NUMBER:	LA123WF4-SR05	BRAND:	LG DISPLAY
SIZE:	12.3INCH	BRIGHTNESS:	420CD/M2
Lamp Type:	WLED	RESOLUTION:	1920(RGB)×720 167PPI
VIEWING ANGLEG:	89/89/89/89 (Typ.)(CR≥10)	TEMPERATURE RANGE:	Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 M/s²)
Highlight:	167PPI RGB TFT LCD Panel , TFT LCD Panel 420cd/m2 , 1920×720 LCM Industrial TFT Display

LG Display LA123WF4-SR05 Application Details

Basic Detail :	Manufacturer LA123WF4-SR05Model Name Panel Type a-Si TFT-LCD , LCM Another Name LA123WF4 (SR)(05) Panel Size 12.3 inch Designed For
Maximum Ratings :	OP Temperature -40 ~ 85 °C ST Temperature -40 ~ 95 °C RoHS 3.0G (29.4 m/s²)Vibration Level

LG Display LA123WF4-SR05 Optical Details

Basic Detail :	Luminance 420 cd/m² (Typ.) Contrast Ratio 800:1 (Min.) (Transmissive) Good View at Symmetry Response Speed 30 (Max.)(G to G); 25 (Typ.)(MPRT) ms Viewing Angle 89/89/89/89 (Min.)(CR≥10) Operating Mode IPS, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit) Color Temperature 6485K White Variation 1.25 (Max.)

LG Display LA123WF4-SR05 Mechanical Details

Pixel Features :	Number of Pixel 1920(RGB)×720 Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0507×0.1521 mm Pixel Pitch(W×H) 0.1521×0.1521 mm [167PPI]
Physical Size :	Active Viewing 292.032(W)×109.512(H) mm Overall Dim. 310(W)×128(H) mm Bezel Opening 296.03(W)×113.5(H) mm Overall Depth 8.2/10.25 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 8:3 Shape Style
Other Detail :	Mass 395/405g (Typ./Max.) Surface Hard coating

LG Display LA123WF4-SR05 Interface Detail

Signal Electrical :	Input Current 130/130mA (Max.)(ICC/IDD) Input Voltage 3.3/13.0V (Typ.)(VCC/VDD) Consumption - Signal Interface RSDS (2 Channel)
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment 0.5 mm 50 pins 1 pcs 0.5 mm 60 pins 1 pcs

LG Display LA123WF4-SR05 Lightting Details

Lamp Features :	Lamp Type WLED Amount 8S6P Position Edge light type Exchange - Lamp Shape 6 strings Lamp Life 10K(Min.) (Hours)
Lamp Electrical :	Input Voltage 23.6±3.1V Input Current 65±5mA Consumption 7.2/9.2/11.63W (Min./Typ./Max.)
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment 0.5 mm 20 pins 1 pcs
Backlight Driver :	No

LG Display LA123WF4-SR05 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	12 pcs / box	-	478×365×195 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
