500cd/M2 WLED WXGA 215PPI TFT LCD Panel LD070WX3-SL01 WXGA 215PPI

500cd/M2 WLED WXGA 215PPI TFT LCD Panel LD070WX3-SL01 WXGA 215PPI
500cd/M2 WLED WXGA 215PPI TFT LCD Panel LD070WX3-SL01 WXGA 215PPI 500cd/M2 WLED WXGA 215PPI TFT LCD Panel LD070WX3-SL01 WXGA 215PPI 500cd/M2 WLED WXGA 215PPI TFT LCD Panel LD070WX3-SL01 WXGA 215PPI

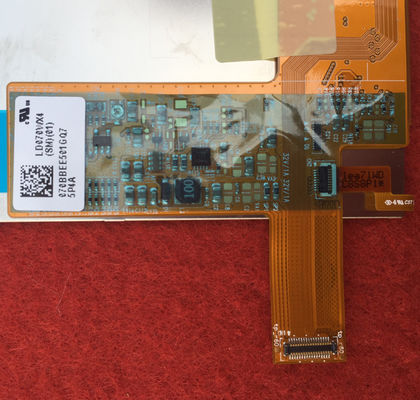

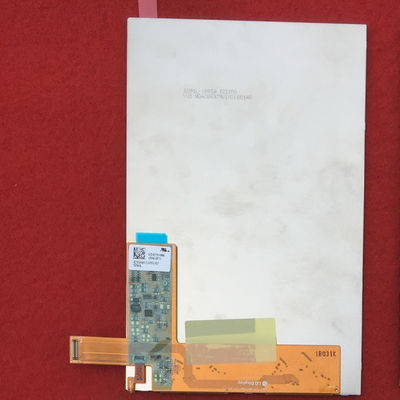

Large Image :  500cd/M2 WLED WXGA 215PPI TFT LCD Panel LD070WX3-SL01 WXGA 215PPI

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LD070WX3-SL01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 2000PCS
Contact Now

500cd/M2 WLED WXGA 215PPI TFT LCD Panel LD070WX3-SL01 WXGA 215PPI

Description
MODEL NUMBER: LD070WX3-SL01 BRAND: LG DISPLAY
SIZE: 7.0"inch BRIGHTNESS: 500CD/M2
Lamp Type: WLED RESOLUTION: 800(RGB)×1280 (WXGA) 215PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
High Light:

WXGA 215PPI TFT LCD Panel

,

500cd/m2 WLED TFT LCD Panel

,

WXGA 215PPI Tft Lcd Display

LG Display LD070WX3-SL01 Application Details

Basic Information :
Brand

LD070WX3-SL01Model
Type
a-Si TFT-LCD , LCM
Used For

7.0 inchScreen Size
Alias
LD070WX3 (SL)(01)
Environment :
Storage Temp.
-20 ~ 70 °C
Operating Temp.
-10 ~ 60 °C



LG Display LD070WX3-SL01 Mechanical Details

Pixel Features :
Resolution
800(RGB)×1280, WXGA
Dot Pitch(mm)
0.03925×0.11775 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.11775×0.11775 (H×V) [215PPI]
Mechanical Size :
Active Area(mm)
94.2(H) × 150.72(V)
Bezel Area(mm)
-
Outline Dim.(mm)
104.32(H) × 161.67(V)
Depth(mm)
2.13/3.84 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
10:16 (H:V)
Orientation
Portrait type
Mounting :
Without
Other Spec :
Weight
85.0g (Max.)
Treatment
Hard coating



LG Display LD070WX3-SL01 Optical Details

Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
35 (Max.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.310; Wy:0.340
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6551K
White Uniformity
1.25/1.43 (Typ./Max.)(9 points)



LG Display LD070WX3-SL01 Interface Detail

Signal Electrical :
Voltage Supply
3.3/1.8V (Typ.)(VDD/VCC)
Current Supply
85/15mA (Typ.)(IDD/ICC)
Consumption
0.31/0.39W (Typ./Max.)
Signal Type :
MIPI (4 data lanes)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
Panasonic
AXT634124
0.4 mm
34 pins
1 pcs



LG Display LD070WX3-SL01 Backlight Details

Backlight Features :
Type
WLED
Quantity
5S5P
Position
Edge light type
Replacement
-
Shape
5 strings
Life Time
-
Lamp Electrical :
Voltage Supply
15.1/16.6V (Typ./Max.)
Current Supply
20.5/21mA (Typ./Max.)
Consumption
1.547/1.702W (Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



LG Display LD070WX3-SL01 Packing Details

Package Box : Quantity Weight Box Size
44 pcs / box - 478×365×244 mm (L×W×H)



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
