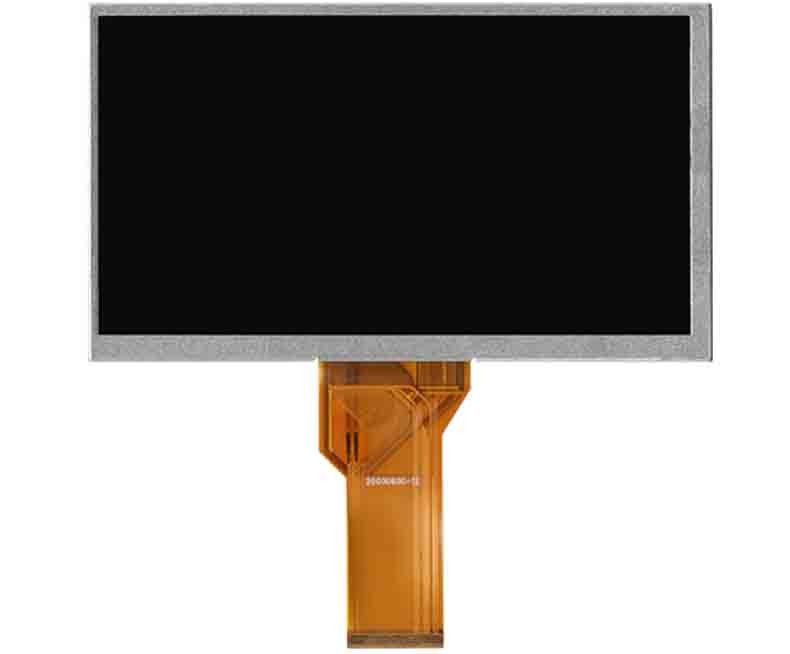

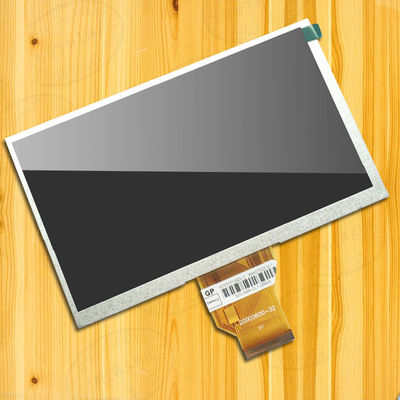

Product Details:
|
| MODEL NUMBER: | LD070WU2-SM01 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | RESOLUTION: | 1200(RGB)×1920, WUXGA, 322PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 450CD/M2 |
| SIZE: | 7.0INCH | BRAND: | LG DISPLAY |
| Highlight: | WUXGA 322PPI TFT LCD Panel,450cd/m2 WLED TFT LCD Panel,1200×1920 RGB Square Tft Display |
||
| Basic Detail : | Manufacturer | Model Name | LD070WU2-SM01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LD070WU2 (SM)(01) | |
| Panel Size | 7.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 16 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 70% | sRGB | 98% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1200(RGB)×1920 [WUXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.02625×0.07875 mm | Pixel Pitch(W×H) | 0.07875×0.07875 mm [322PPI] | |
| Physical Size : | Active Viewing | 94.5(W)×151.2(H) mm | Overall Dim. | 104.52(W)×161.87(H) mm |
| Bezel Opening | - | Overall Depth | 2.4 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 10:16 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 75.0g (Max.) | Surface | Hard coating |
| Signal Electrical : | Input Current | - | Input Voltage | 3.7/1.8V (Typ.)(VSYS/VDD) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.5W (Max.) | Signal Interface | MIPI (4 data lanes) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Panasonic | AXE640124 | 1 pcs | 0.4 mm | 40 pins | ||
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | QLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 4S6P | Life | - | |
| Lamp Electrical : | Input Current | 20/20.5mA (Typ./Max.) | Input Voltage | 11.6/12.8V (Typ./Max.) | ||
| Consumption | 1.39/1.57W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 44 pcs / box | 365×478×244 mm | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
