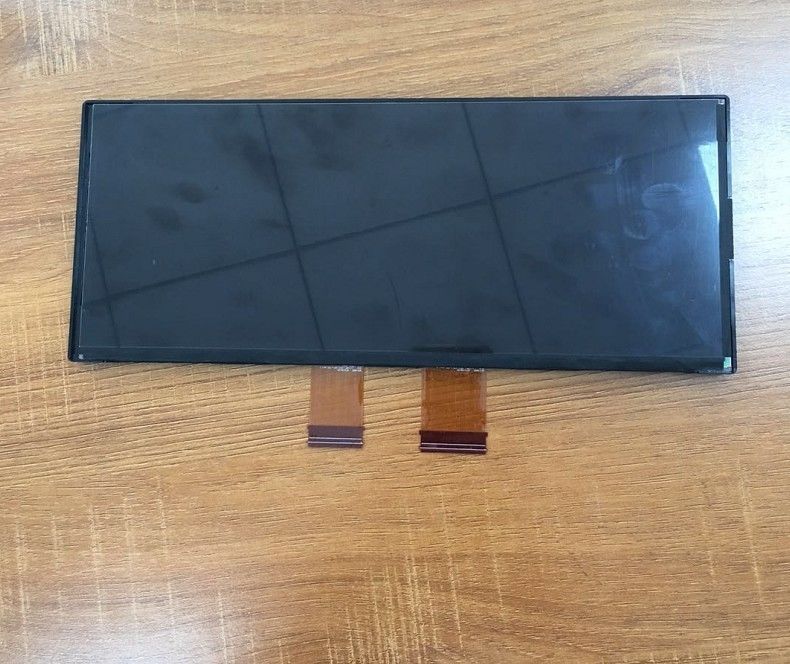

Product Details:
|
| MODEL NUMBER: | LA123WF4-SR03 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 12.3 Inch | BRIGHTNESS: | 600CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×720 167PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| Highlight: | 12.3" RGB Square Tft Screen,600cd/M2 Square Tft Screen,Industrial Lcd Panel 167PPI |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LA123WF4-SR03 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -40 ~ 85 °C | -40 ~ 95 °C | 3.0G (29.4 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 600 (Min.) | 89/89/89/89 (Min.)(CR≥10) | 30 (Max.)(G to G); 25 (Typ.)(MPRT) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 800 : 1 (Min.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| White Variation : | 1.25 (Max.) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | ||
| Panel Size : | 12.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×720 | RGB Vertical Stripe | 0.1521×0.1521 [167PPI] | 0.0507×0.1521 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 292.032(H) × 109.512(V) | 296.03(H) × 113.5(V) | 310(H) × 128(V) | 8.2/10.25 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 8:3 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 385/400g (Typ./Max.) | - | Hard coating | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 11S4P | 4 strings | 10K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 28.6/31.9/34.1V (Min./Typ./Max.) | 75±5mA | 7.7/9.57/11.62W (Min./Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 20 pins | 1 pcs | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/13.0V (Typ.)(VCC/VDD) | 130/130mA (Max.)(ICC/IDD) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | RSDS (2 Channel) | FPC | ||||

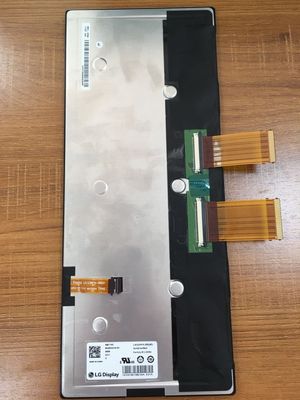

| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||
| 0.5 mm | 60 pins | 1 pcs | ||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 8 pcs / box | - | 362×354×226 mm (L×W×H) |
