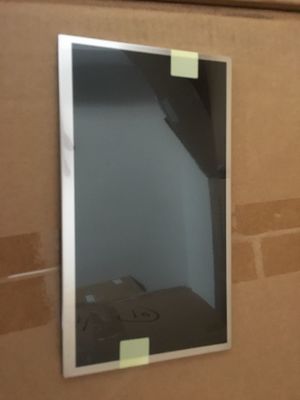

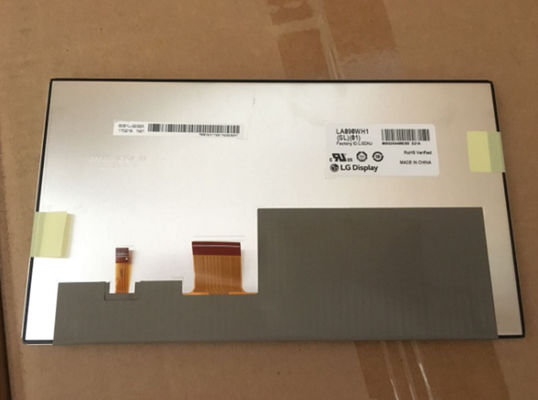

Product Details:
|
| MODEL NUMBER: | LA090WH1-SL01 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 95 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 80/80/80/80 (Typ.)(CR≥10) | RESOLUTION: | 1280(RGB)×720, WXGA, 164PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 600CD/M2 |
| SIZE: | 9.0INCH | BRAND: | LG DISPLAY |
| High Light: | 1280×720 WLED Industrial Lcd Display,600cd/m2 WLED Industrial Lcd Display,164PPI Square Tft Screen |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LA090WH1-SL01 | a-Si TFT-LCD , LCM | LA090WH1 (SL)(01) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 80 °C | -40 ~ 95 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 600 (Typ.) | 80/80/80/80 (Min.)(CR≥10) | 17/13 (Max.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7351K | 16.7M (8-bit) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 65% | 85% | 67% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 67% | 48% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.18/1.25 (Typ./Max.)(9 points) | ||
| Panel Size : | 9.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1280(RGB)×720 [WXGA] | RGB Vertical Stripe | 0.1566×0.1473 [164PPI] | 0.0522×0.1473 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 200.448(H) × 106.056(V) | 203.148(H) × 108.756(V) | 213.2(H) × 121.2(V) | 6.2/8.6 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 17:9 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 219/224g (Typ./Max.) | - | Antiglare | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6S3P | 3 strings | 10K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 16.2/18.0/20.4V (Min./Typ./Max.) | ||||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| IMSA-9632S-10Y800 | 6 pins | 1 pcs | BLE-10PINS-AAANCNCNCN | |||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 600/800mA (Typ./Max.) | 2.0/2.7W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| molex | 505110-6091 | 0.5 mm | 60 pins | 1 pcs | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 16 pcs / box | - | 478×365×195 mm (L×W×H) |
