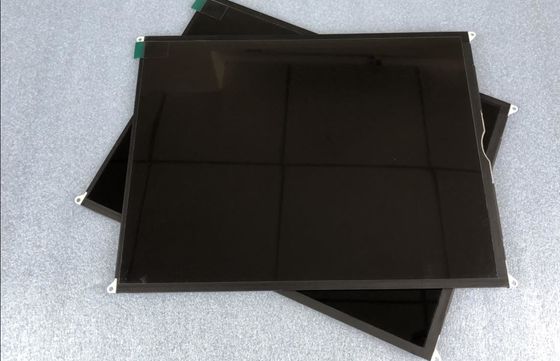

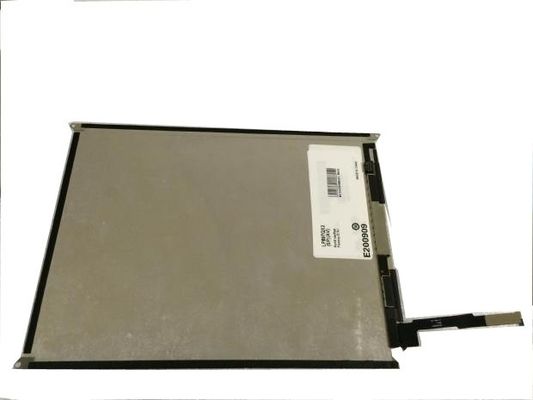

Product Details:
|
| MODEL NUMBER: | LP097QX2-SPAV | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | RESOLUTION: | 1536(RGB)×2048 (QXGA) 264PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 440CD/M2 |
| SIZE: | 9.7INCH | BRAND: | LG DISPLAY |
| High Light: | 1536×2048 RGB Industrial Lcd Display,440cd/m2 Industrial Lcd Display,264PPI Symmetry Industrial Lcd Panel |
||
| Basic Info : | Panel Brand | Panel Model | LP097QX2-SPAV | |
|---|---|---|---|---|
| Diagonal Size | 9.7" | Application | ||

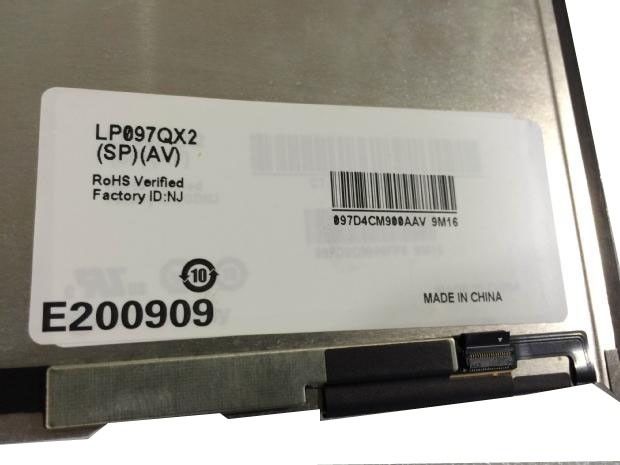

| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LP097QX2 (SP)(AV) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 1536(RGB)×2048 [QXGA] | Dot Pitch | 0.032×0.096 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.096×0.096 mm (H×V) [264PPI] | |
| Mechanical Size : | Display Area | 147.456×196.608 mm (H×V) | Bezel Area | 151.49×200.62 mm (H×V) |
| Outline Dim. | 160.3×208.93 mm (H×V) | Outline Depth | 2.08 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 3:4 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (4 pcs) on up, down slugs | |||
| Other Features : | Weight | 112g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H), Antireflection |
| Basic Information : | Brightness | 440 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.3056; Wy:0.3193 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 7010K | White Uniformity | 1.40/1.60 (Typ./Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 12 strings | Lamp Type | WLED | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | Current Input | 17.5mA (Typ.) | |||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | eDP (4 Lanes) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.7V (Typ.) | Current Input | 215±22mA | ||
| Consumption | 0.8/0.88W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 42 pins | 1 pcs | |||||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 30 pcs / box | - | 478×365×288 mm |
