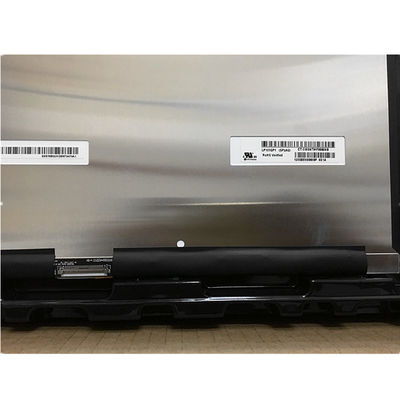

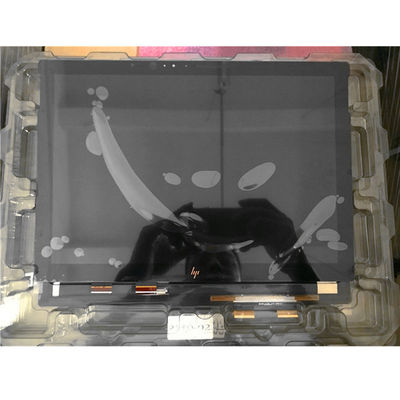

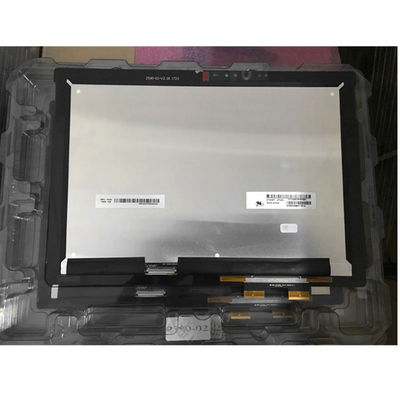

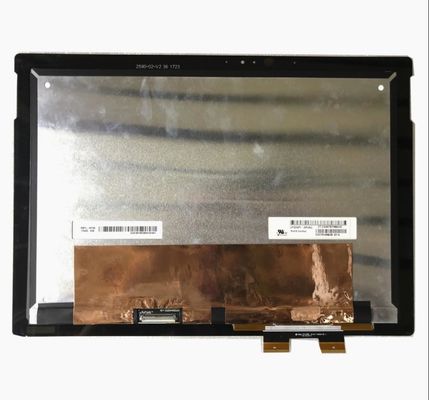

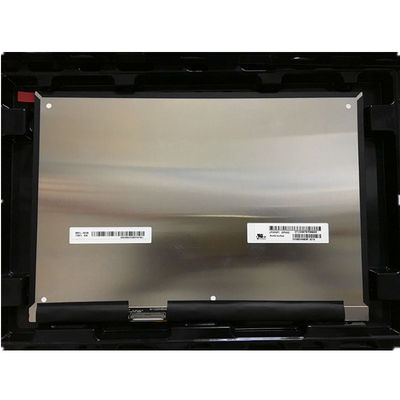

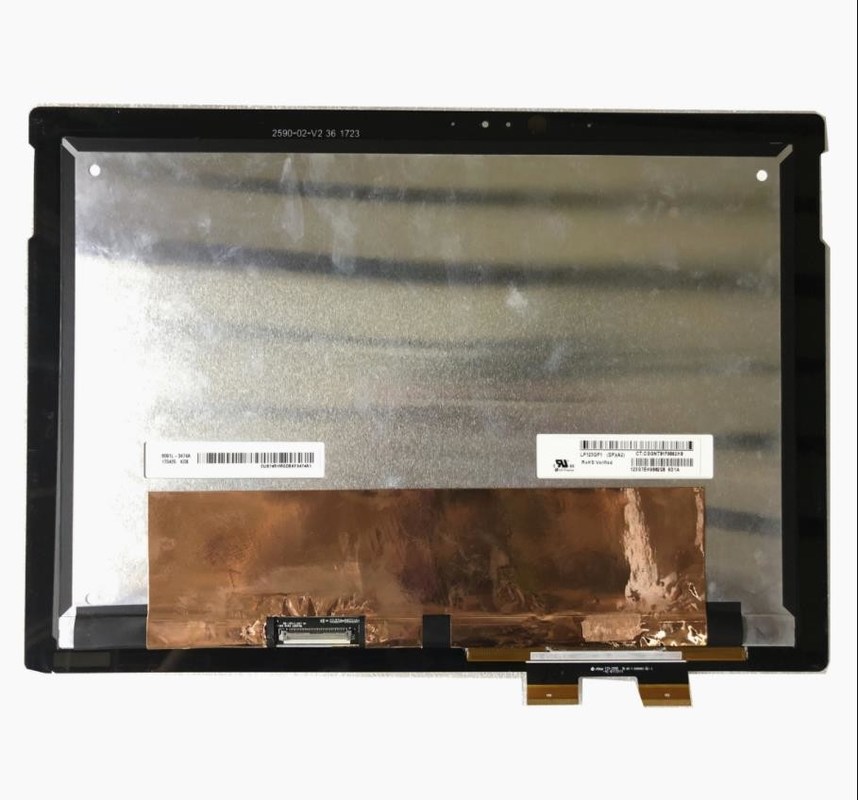

Product Details:
|
| MODEL NUMBER: | LP123QP1-SPA2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 12.3INCH | BRIGHTNESS: | 450CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3000(RGB)×2000 293PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 3000×2000 RGB TFT LCD Panel,293PPI TFT LCD Panel,450cd/M2 WLED Tft Lcd Display |
||
| Basic Information : | Brand | Model | LP123QP1-SPA2 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 12.3" | Alias | LGD055D | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.0G (9.8 m/s²) |
| Pixel Features : | Resolution | 3000(RGB)×2000 | Dot Pitch(mm) | 0.02885×0.08655 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.08655×0.08655 (H×V) [293PPI] | |
| Mechanical Size : | Active Area(mm) | 259.65(H) × 173.1(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 265.35(H) × 183.49(V) | Depth(mm) | 1.95/4.3 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Aspect Ratio | 15:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 175g (Typ.) | Treatment | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 35 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 415/476mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.37/1.57W (Typ./Max.) | |||||
| Signal Type : | eDP (4 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | KN38-40S-0.5H | 1 pcs | 40 pins | 0.5 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 397/410mA (Typ./Max.) | ||
| Consumption | 4.76/4.92W (Typ./Max.) | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 34 pcs / box | - | 485×372×245 mm (L×W×H) |
