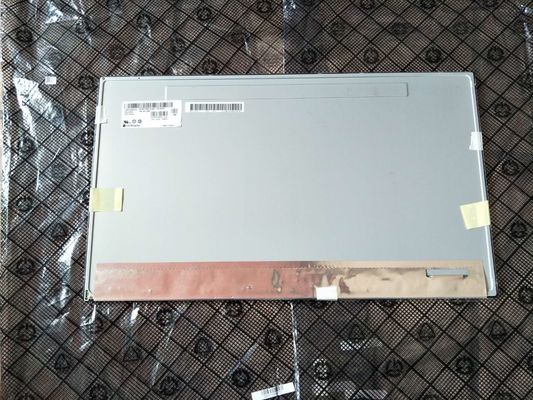

Product Details:
|
| MODEL NUMBER: | LM215WF3-SLS2 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | RESOLUTION: | 920(RGB)×1080 [FHD] 102PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 250CD/M2 |
| SIZE: | 21.5 Inch | BRAND: | LG DISPLAY |
| High Light: | 21.5" WVGA TFT LCD Panel,102PPI FHD TFT LCD Panel,250cd/m2 NTSC Industrial TFT Display |
||
| Basic Information : | Brand | Model | LM215WF3-SLS2 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 21.5" | Alias | LM215WF3 (SL)(S2) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.0G (9.8 m/s²) |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.08265×0.24795 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.24795×0.24795 (H×V) [102PPI] | |
| Mechanical Size : | Active Area(mm) | 476.064(H) × 267.786(V) | Bezel Area(mm) | 479.8(H) × 271.3(V) |
| Outline Dim.(mm) | 497.6(H) × 292.2(V) | Depth(mm) | 8.9/11.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.69/1.77Kgs (Typ./Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 600/740mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 3.0/3.75W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30O-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160B | |
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type (Right side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 17S2P | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 48.6±3.4V | Current Supply | 70/75mA (Typ./Max.) | ||
| Consumption | 6.8/7.3W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | 10035WR-H06D | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CNAANC | |
| Backlight Driver : | No | |||||

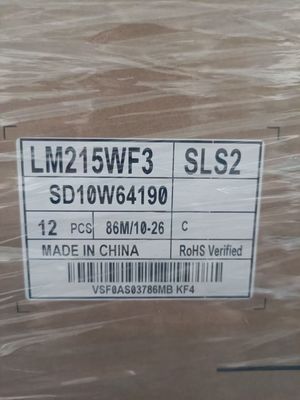

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 12 pcs / box | - | 365×315×568 mm (L×W×H) |
