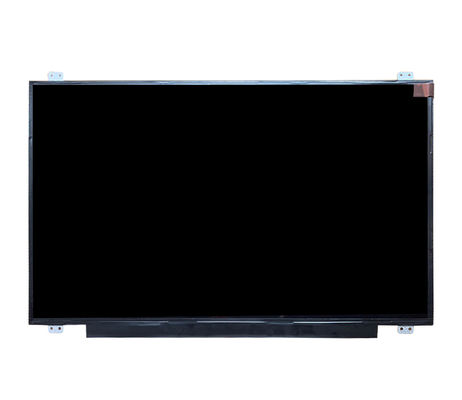

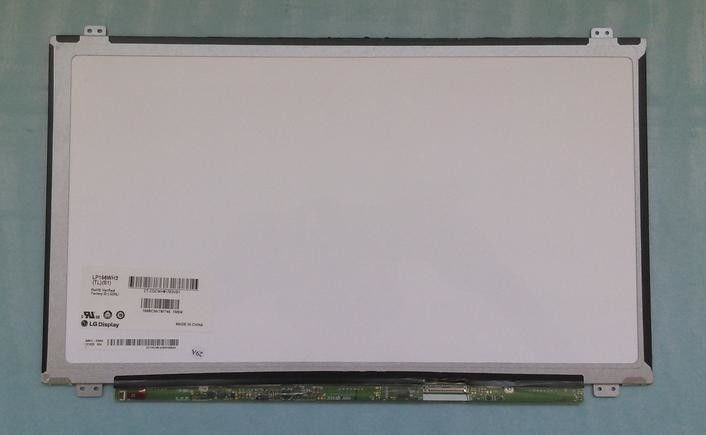

Product Details:
|
| MODEL NUMBER: | LP156WHB-TLA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 15.6 Inch | BRIGHTNESS: | 200CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768, WXGA, 100PPI |
| VIEWING ANGLEG: | 40/40/15/30 (Min.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 1366×768 RGB Industrial TFT Display,WXGA 100PPI Industrial TFT Display,200cd/m2 NTSC Square Lcd Panel |
||
| Basic Information : | Manufacturer | Panel Model 26 Compatible | Panel Type | Alias |
|---|---|---|---|---|
| LP156WHB-TLA1 | a-Si TFT-LCD , LCM | LP156WHB (TL)(A1), LGD032E | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 200 (Typ.) | 40/40/15/30 (Min.)(CR≥10) | 16 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 66% | 49% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.40/1.60 (Typ./Max.)(13 points) | ||
| Panel Size : | 15.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1366(RGB)×768 [WXGA] | RGB Vertical Stripe | 0.252×0.252 [100PPI] | 0.084×0.252 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 344.232(H) × 193.536(V) | 347.5(H) × 196.8(V) | 359.5(H) × 223.5(V) | 3.5/3.8 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Flat (PCBA Flat, T3.4~4.0mm) | |
| Mounting : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 400g (Max.) | - | Glare (Haze 0%), Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 12K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 7.0/12.0/21.0V (Min./Typ./Max.) | 175/193mA (Typ./Max.) | 2.1/2.3W (Typ./Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 210/245mA (Typ./Max.) | 0.7/0.8W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (1 ch, 6-bit) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GT05Q-40S-H10 | 0.5 mm | 40 pins | 1 pcs | LVDS-40P1C6B-060B | |
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 20 pcs / box | - | 478×365×328 mm (L×W×H) |
