Product Details:
|
| MODEL NUMBER: | LD430EUE-FHB1 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | RESOLUTION: | 1920(RGB)×1080 [FHD] 51PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 450CD/M2 |
| SIZE: | 43 Inch | BRAND: | LG DISPLAY |
| High Light: | FHD 51PPI Square Lcd Panel,450cd/M2 RGB Square Lcd Panel,1920×1080 WLED Industrial TFT Display |
||
| Basic Information : | Brand | Model | LD430EUE-FHB1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||

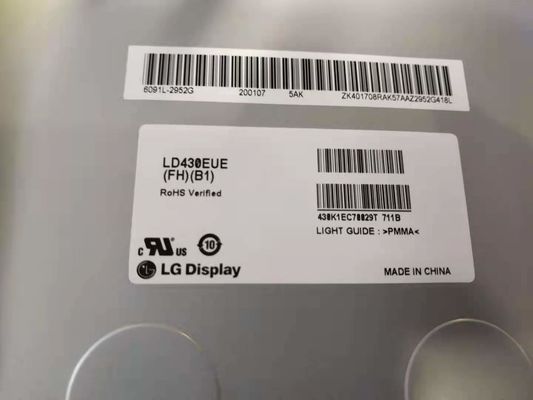

| Screen Size | 43" | Alias | LD430EUE (FH)(B1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.1634×0.4902 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.4902×0.4902 (H×V) [51PPI] | |
| Mechanical Size : | Active Area(mm) | 941.184(H) × 529.416(V) | Bezel Area(mm) | 945.8(H) × 534.02(V) |
| Outline Dim.(mm) | 963.6(H) × 567.9(V) | Depth(mm) | 17/29.6 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape / Portrait | |
| Other Spec : | Weight | 7.50Kgs (Typ.) | Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 1100:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Display Mode | S-IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 12 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.281; Y:0.288 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 9966K | White Uniformity | 1.54 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 97% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 370/481mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.4/5.7W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-RXE51S-HF | 1 pcs | 51 pins | 0.5 mm | ||
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 2 strings | Life Time | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 118.2/140V (Typ./Max.) | Current Supply | 155mA (Typ.) | ||
| Consumption | 37.4/43.4W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | SMH200-H07M | 1 pcs | 7 pins | 2.0 mm | BEL-7PINS-CNANCNA | |
| Backlight Driver : | No | |||||

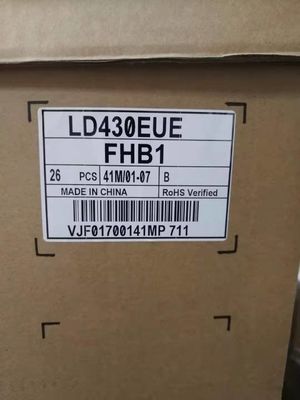

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 26 pcs / box | - | 1300×1140×746 mm (L×W×H) |
