1024×768 RGB Industrial TFT Display 300cd/m2 LB150X02-TL01 XGA 85PPI

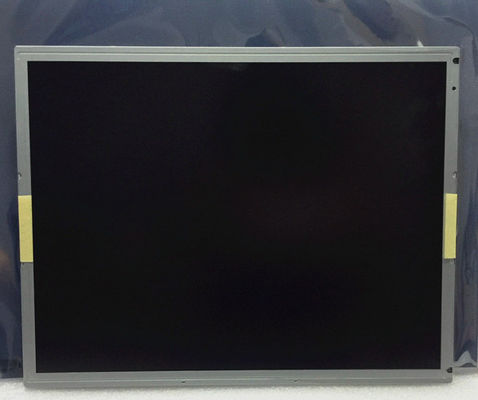

Large Image : 1024×768 RGB Industrial TFT Display 300cd/m2 LB150X02-TL01 XGA 85PPI

Product Details:

Place of Origin:	JAPAN
Brand Name:	LG. LCD
Certification:	ISO9001
Model Number:	LB150X02-TL01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	1000PCS

Contact Now

1024×768 RGB Industrial TFT Display 300cd/m2 LB150X02-TL01 XGA 85PPI

Description

MODEL NUMBER:	LB150X02-TL01	BRAND:	LG. LCD
SIZE:	15.0 Inch	BRIGHTNESS:	300CD/M2
Lamp Type:	WLED	RESOLUTION:	1024(RGB)×768 [XGA] 85PPI
VIEWING ANGLEG:	75/75/70/75 (Typ.)(CR≥10	TEMPERATURE RANGE:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:	1024×768 RGB Industrial TFT Display , Industrial TFT Display 300cd/m2 , XGA 85PPI Industrial Lcd Display

LG. LCD LB150X02-TL01 Application Details

Basic Information :	Brand LB150X02-TL01Model Type a-Si TFT-LCD , LCM Used For 15.0 inchScreen Size Alias LB150X02 (TL)(01)
Environment :	Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C

LG. LCD LB150X02-TL01 Mechanical Details

Pixel Features :	Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.099×0.297 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.297×0.297 (H×V) [85PPI]
Mechanical Size :	Active Area(mm) 304.128(H) × 228.096(V) Bezel Area(mm) 307.4(H) × 231.3(V) Outline Dim.(mm) 326.5(H) × 253.5(V) Depth(mm) 11.2 (Typ.)
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight 1.00Kgs (Typ.) Treatment Antiglare, Hard coating (3H)

LG. LCD LB150X02-TL01 Optical Details

Basic Information :	Luminance(cd/m²) 300 (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive) Viewing Angle 75/75/70/75 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 6 o'clock Response(ms) 2/6 (Typ.)(Tr/Td)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 16.7M (6-bit + Hi-FRC) Color Temperature 6485K White Uniformity -
1931 Color Gamlt :	NTSC Ratio 62% sRGB 86% coverage Adobe RGB 64% coverage DCI-P3 64% coverage Rec.2020 46% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG. LCD LB150X02-TL01 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 548mA (Typ.) Consumption 1.81W (Typ.)
Signal Type :	LVDS (1 ch, 8-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration LS Mtron GT123-20P-H16-LSS 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-040A

LG. LCD LB150X02-TL01 Backlight Details

Backlight Features :	Type CCFL Quantity 2 pcs Position Edge light type Replacement - Shape Straight Life Time 50K(Min.) (Hours)
Lamp Electrical :	Voltage Supply 580V (Typ.) Current Supply 7.0mA (Typ.) Consumption 8.12W (Typ.)
Interface Features :	Position - Type Connector

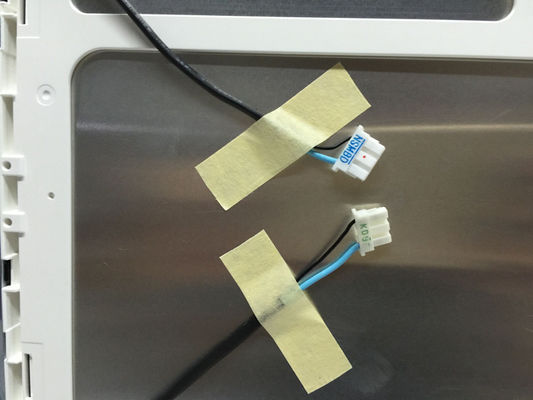

Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST BHR-03VS-1 4.0 mm 3 pins 2 pcs BLL-3PINS-HNL
Backlight Driver :	No

LG. LCD LB150X02-TL01 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	14 pcs / box	-	370×320×413 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

1024×768 RGB Industrial TFT Display 300cd/m2 LB150X02-TL01 XGA 85PPI 0
