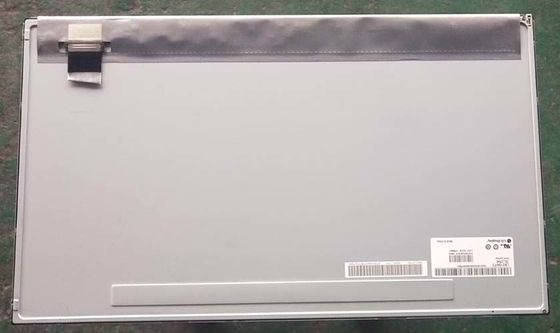

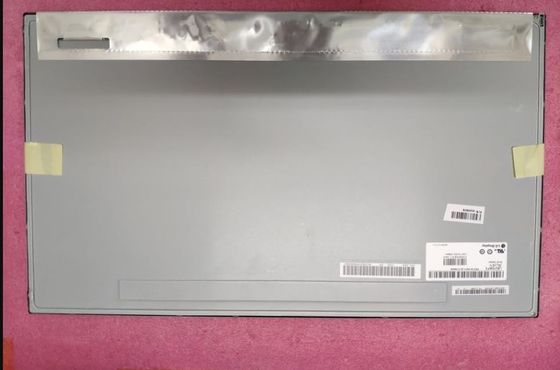

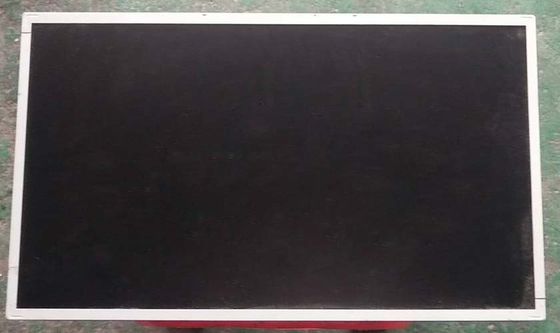

21.5" RGB 1920×1080 250cd/m2 Square LCD Panel FHD 102PPI LM215WF3-SLN1

Large Image : 21.5" RGB 1920×1080 250cd/m2 Square LCD Panel FHD 102PPI LM215WF3-SLN1

Product Details:

Place of Origin:	JAPAN
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LM215WF3-SLN1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	1000PCS

Contact Now

21.5" RGB 1920×1080 250cd/m2 Square LCD Panel FHD 102PPI LM215WF3-SLN1

Description

MODEL NUMBER:	LM215WF3-SLN1	TEMPERATURE RANGE:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
VIEWING ANGLEG:	89/89/89/89 (Typ.)(CR≥10)	RESOLUTION:	1920(RGB)×1080, FHD, 102PPI
Lamp Type:	WLED	BRIGHTNESS:	250CD/M2
SIZE:	21.5 Inch	BRAND:	LG DISPLAY
High Light:	250cd/m2 Square LCD Panel , 21.5" RGB Square LCD Panel , FHD 102PPI Industrial TFT Display

LG Display LM215WF3-SLN1 Application Details

Basic Information :	Brand LM215WF3-SLN1Model Type a-Si TFT-LCD , LCM Used For 21.5 inchScreen Size Alias LM215WF3 (SL)(N1)
Environment :	Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C RoHS 1.0G (9.8 m/s²)Vibration

LG Display LM215WF3-SLN1 Mechanical Details

Pixel Features :	Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.0825×0.2475 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.2475×0.2475 (H×V) [102PPI]
Mechanical Size :	Active Area(mm) 475.2(H) × 267.3(V) Bezel Area(mm) 479.8(H) × 272.3(V) Outline Dim.(mm) 497.6(H) × 292.2(V) Depth(mm) 8.9/11.0 (Typ./Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Normal bezel Aspect Ratio 16:9 (H:V) Orientation Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight 1.68/1.77Kgs (Typ./Max.) Treatment Antiglare, Hard coating (3H)

LG Display LM215WF3-SLN1 Optical Details

Basic Information :	Luminance(cd/m²) 250 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Typ.)(CR＞10) Display Mode IPS, Normally Black, Transmissive Best View on Symmetry Response(ms) 14 (Typ.)(G to G)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 16.7M (6-bit + Hi-FRC) Color Temperature 6485K White Uniformity 1.33 (Max.)(13 points)
1931 Color Gamlt :	NTSC Ratio 72% sRGB 95% coverage Adobe RGB 74% coverage DCI-P3 75% coverage Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM215WF3-SLN1 Interface Detail

Signal Electrical :	Voltage Supply 5.0V (Typ.) Current Supply 750/940mA (Typ./Max.) Consumption 3.75/4.7W (Typ./Max.)
Signal Type :	LVDS (2 ch, 8-bit) Logic Voltage -
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JAE FI-X30SSL-HF 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160B

LG Display LM215WF3-SLN1 Backlight Details

Backlight Features :	Type WLED Quantity 17S2P Position Edge light type (Right side) Replacement - Shape 2 strings Life Time 30K(Min.) (Hours)
Lamp Electrical :	Voltage Supply 52.7±3.4V Current Supply 100/105mA (Typ./Max.) Consumption 10.5/11.2W (Typ./Max.)
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST SM06B-SHJH(HF) 1.0 mm 6 pins 1 pcs BLE-6PINS-CNAANC
Backlight Driver :	No

LG Display LM215WF3-SLN1 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	12 pcs / box	-	365×315×570 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
