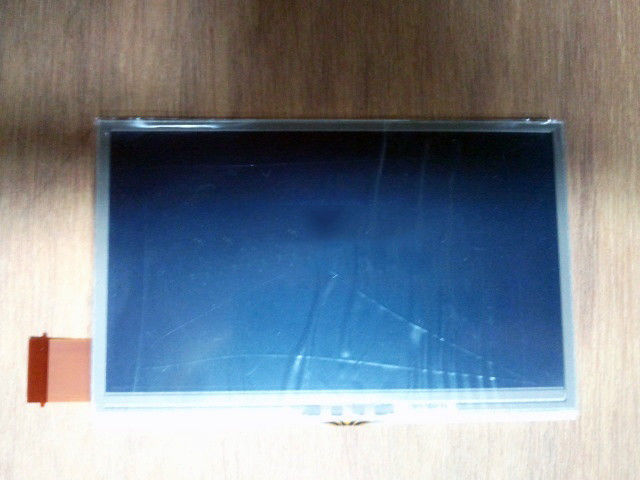

Product Details:
|
| MODEL NUMBER: | LB043WQ3-TD01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 4.3 Inch | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 480×272(RGB), WQVGA, 128PPI |
| VIEWING ANGLEG: | 70/70/65/55 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -40 ~ 80 °C |
| Highlight: | 480×272 RGB Industrial Lcd Display,350cd/M2 NTSC Industrial Lcd Display,WQVGA 128PPI Industrial TFT Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LB043WQ3-TD01 | a-Si TFT-LCD , LCM | LB043WQ3 (TD)(01) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -40 ~ 80 °C |
| Panel Size : | 4.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 480×272(RGB), WQVGA | RGB Horizontal Stripe | 0.198×0.066 mm | 0.198×0.198 mm [128PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 95.04×53.856 mm | 98.84×57.06 mm | 105.5×67.2 mm | 4.0±0.15 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| - | - | - | 4-wire Resistive Touch, F/G | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 70.0g (Typ.) | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/65/55 (Typ.)(CR≥10) | 12 o'clock | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6208K | 16.7M (8-bit) | X:0.317; Y:0.340 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 48% | 66% | 50% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 50% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.40/1.60 (Typ./Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 2.5/3.3V (Typ.)(VDD) | 157/180mW (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.6 mm | 45 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 10S1P | - | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||

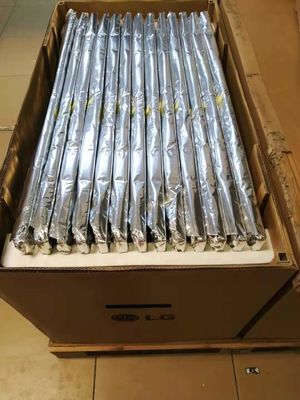

| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 117 pcs / box | - | 475×348×175 mm (L×W×H) |
