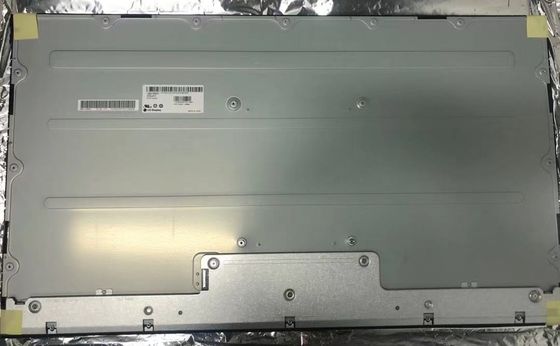

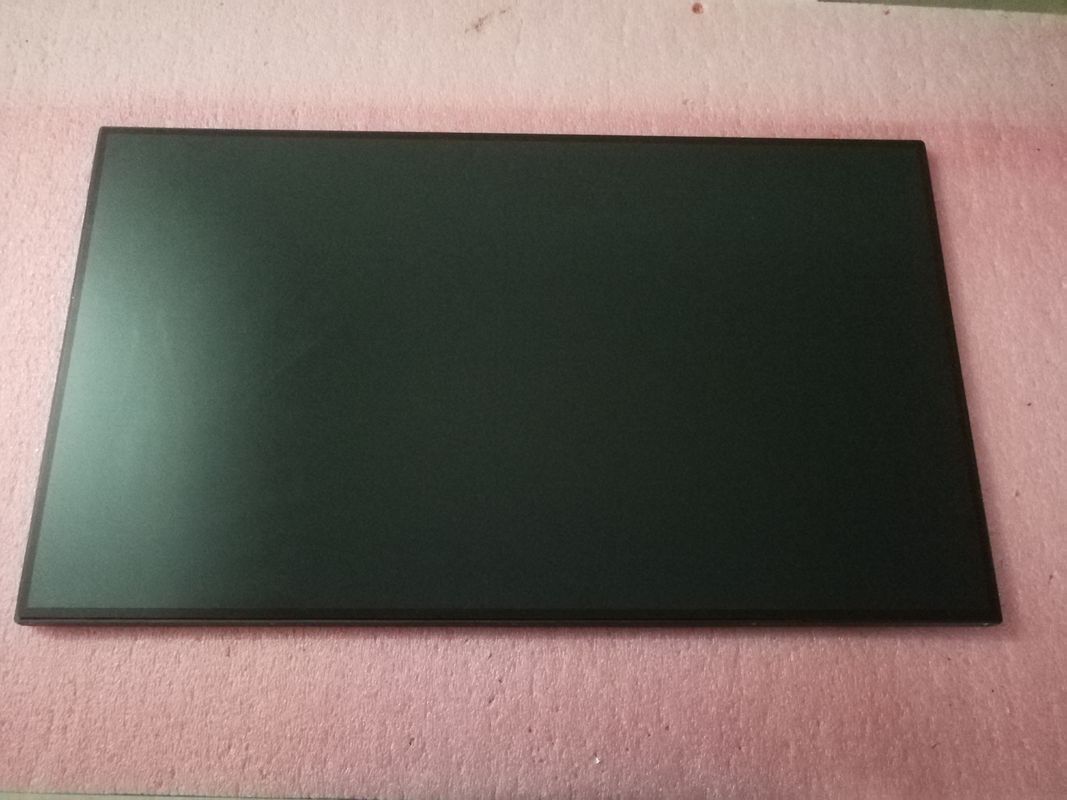

Product Details:
|
| MODEL NUMBER: | LM315WR1-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 32.0INCH | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160 [UHD] 139PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 3840×2160 Symmetry TFT LCD Module,32.0" RGB TFT LCD Panel,350cd/m2 NTSC Industrial TFT Display |
||
| Basic Information : | Brand | Model | LM315WR1-SSA1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 32.0" | Alias | LM315WR1 (SS)(A1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 3840(RGB)×2160, UHD | Dot Pitch(mm) | 0.06053×0.18159 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.18159×0.18159 (H×V) [139PPI] | |
| Mechanical Size : | Active Area(mm) | 697.31(H) × 392.23(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 709.2(H) × 405.48(V) | Depth(mm) | 10/14.2 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | 4-side borderless |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (9-M3) | |||
| Other Spec : | Weight | 4.52/4.75Kgs (Typ./Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 77% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 10.0V (Typ.) | Current Supply | 0.85/1.06A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 8.5/10.6W (Typ./Max.) | |||||
| Signal Type : | eDP (4 Lanes), HBR2 (5.4G/lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 30 pins | 0.5 mm | EDP-30P4L-060A | |
| Backlight Features: | Shape | 2 strings × 2CN | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 17S4P | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 55.5±3.8V | Current Supply | 110/115mA (Typ./Max.) | ||
| Consumption | 24.4/26.1W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | 10035WR-H06D | 2 pcs | 6 pins | 1.0 mm | BLE-6PINS-CNAANC | |
| Backlight Driver : | No | |||||

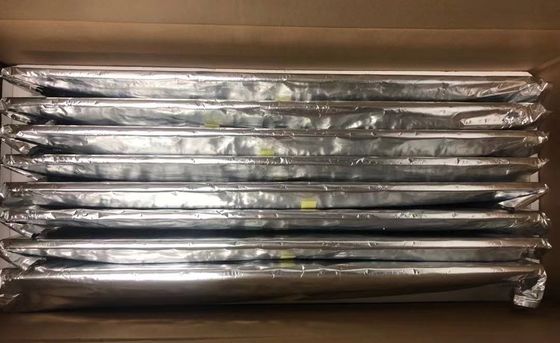

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 14 pcs / box | - | 814×547×509 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
