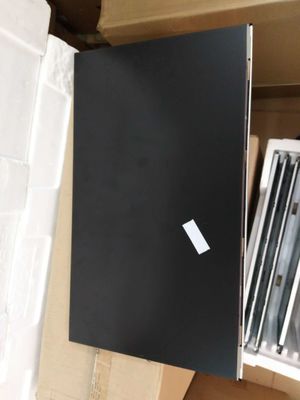

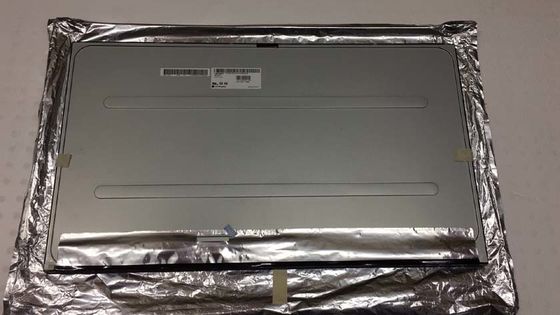

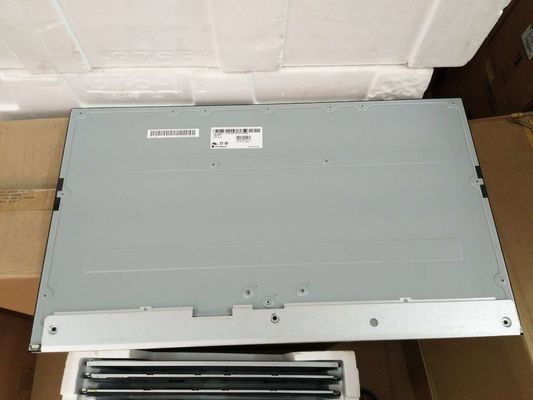

Product Details:
|
| MODEL NUMBER: | LM270WF7-SLA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 81PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 300cd/m2 NTSC TFT LCD Panel,27.0in RGB TFT LCD Panel,FHD 81PPI Square Tft Screen |
||
| Basic Info : | Panel Brand | Panel Model | LM270WF7-SLA1 | |
|---|---|---|---|---|
| Diagonal Size | 27.0" | Application |
|
|

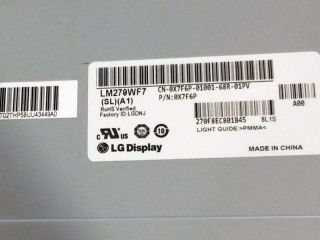

| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM270WF7 (SL)(A1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.1038×0.3114 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.3114×0.3114 mm (H×V) [81PPI] | |
| Mechanical Size : | Display Area | 597.888×336.312 mm (H×V) | Bezel Area | 601.5×339.95 mm (H×V) |
| Outline Dim. | 611.5×355.8 mm (H×V) | Outline Depth | 9.5/13.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel | |
| Holes & Brackets : | without mounting hole | |||
| Other Features : | Weight | 2.85/3.0Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 17S4P | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 51.0±3.4V | Current Input | 75/80mA (Typ./Max.) | ||
| Consumption | 15.3/16.4W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BM06B-SHJS-TB(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 470/585mA (Typ./Max.) | ||
| Consumption | 2.35/2.92W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| UJU | IS100-L30O-C23 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-170C | |
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 10 pcs / box | - | 355×700×430 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
