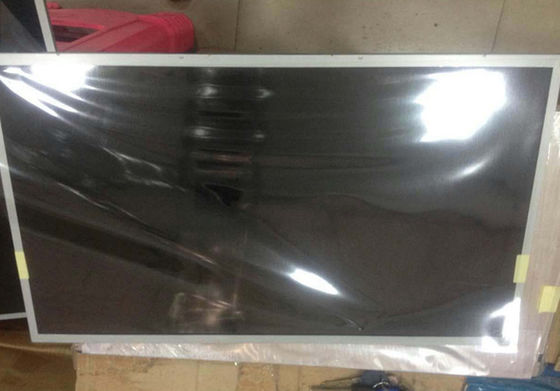

Product Details:
|
| MODEL NUMBER: | LM215WF3-SLA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 21.5 Inch | BRIGHTNESS: | 330CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 (FHD) 102PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 1920×1080 RGB Industrial TFT Display,330cd/m2 Industrial TFT Display,FHD 102PPI Square Tft Screen |
||
| Basic Info : | Panel Brand | Panel Model | LM215WF3-SLA1 | |
|---|---|---|---|---|
| Diagonal Size | 21.5" | Application | ||

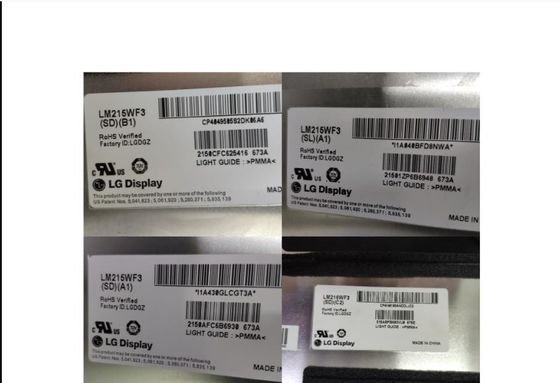

| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM215WF3 (SL)(A1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.0825×0.2475 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2475×0.2475 mm (H×V) [102PPI] | |
| Mechanical Size : | Display Area | 475.2×267.3 mm (H×V) | Bezel Area | 479.84×272.32 mm (H×V) |
| Outline Dim. | 495.6×305.25 mm (H×V) | Outline Depth | 16.3 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 2.30Kgs (Typ.) | Surface | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Basic Information : | Brightness | 330 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR＞10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 6.5/7.5 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 76% | sRGB | 100% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Life Time | 39K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3 strings | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 58±3V | Current Input | 250mA (Typ.) | ||
| Consumption | 43.25/44.75W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | H401K-D06N-12B | 2.0 mm | 6 pins | 1 pcs | BLE-6PINS-CACACA | |
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 743/1062/1380mA (Min./Typ./Max.) | ||
| Consumption | 5.31/6.90W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-X30SSL-HF | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160P | |

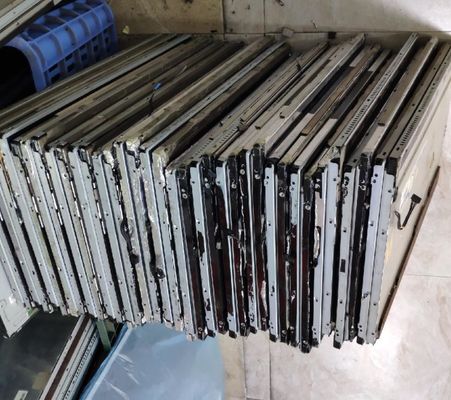

| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 7 pcs / box | - | 360×310×562 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
