Product Details:
|
| MODEL NUMBER: | LA123WF5-SL01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 12.3INCH | BRIGHTNESS: | 780CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×720 167PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |
| High Light: | 1920×720 RGB Industrial Lcd Display,780cd/m2 Industrial Lcd Display,12.3" NTSC Lcd Industrial Panel |
||
| Basic Info : | Panel Brand | Panel Model | LA123WF5-SL01 | |
|---|---|---|---|---|
| Diagonal Size | 12.3" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LA123WF5 (SL)(01) | |
| Reliability : | Operating Temp. | -40 ~ 85 °C | Storage Temp. | -40 ~ 90 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×720 | Dot Pitch | 0.0507×0.1521 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1521×0.1521 mm (H×V) [167PPI] | |
| Mechanical Size : | Display Area | 292.032×109.512 mm (H×V) | Bezel Area | 295.032×112.512 mm (H×V) |
| Outline Dim. | 308×123.92 mm (H×V) | Outline Depth | 8.0 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Free Shape | Orientation | Landscape type |
| Aspect Ratio | 8:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Rear mounting holes | |||
| Other Features : | Weight | 410/420g (Typ./Max.) | Surface | Hard coating (3H) |
| Basic Information : | Brightness | 780 cd/m² (Min.) | Contrast Ratio | 800:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 19 (Typ.)(G to G); 25 (Typ.)(MPRT) (ms) | |
| Color Performance : | Chromaticity | Wx:0.307; Wy:0.321 | Color Numbers | 16.7M (6-bit + Dithering) |
| Color Temperature | 6904K | White Uniformity | 1.33 (Max.) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 11S4P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 29.7/33/34.1V (Min./Typ./Max.) | Current Input | 78mA (Typ.) | ||
| Consumption | 10.3/10.6W (Typ./Max.) | |||||

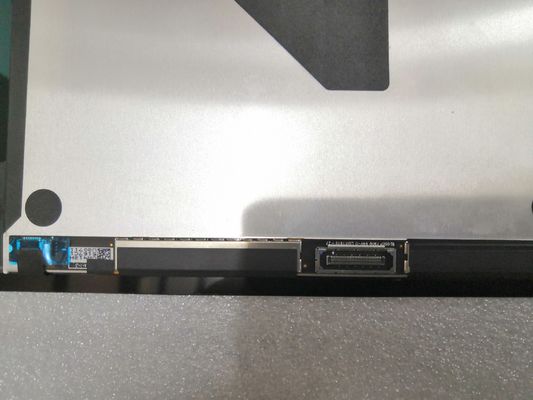

| Interface Features : | Type | FPC | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 20 pins | 1 pcs | ||||
| Signal Systerm : | Mini LVDS | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/13/22/-9.5V (Typ.)(DVDD/AVDD/VHG/VGL) | Current Input | 30/25/1/1.5mA (Typ.)(DIDD/AIDD/IGH/IGL) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | FH28D-20S-0.5SH | 0.5 mm | 20 pins | 1 pcs | ||
