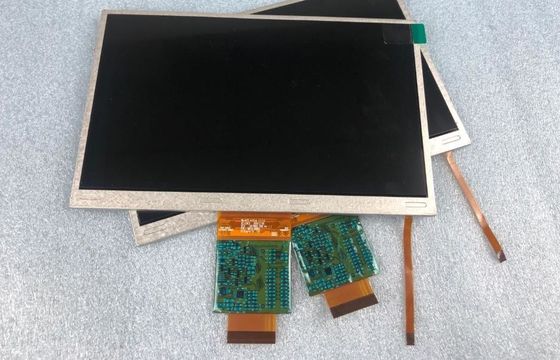

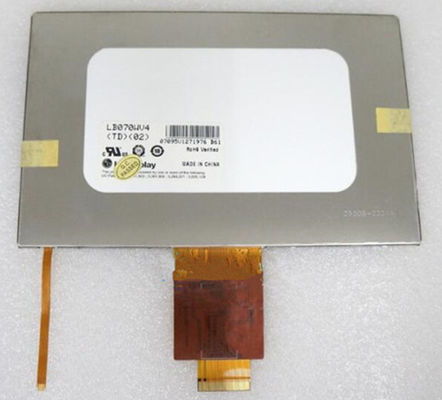

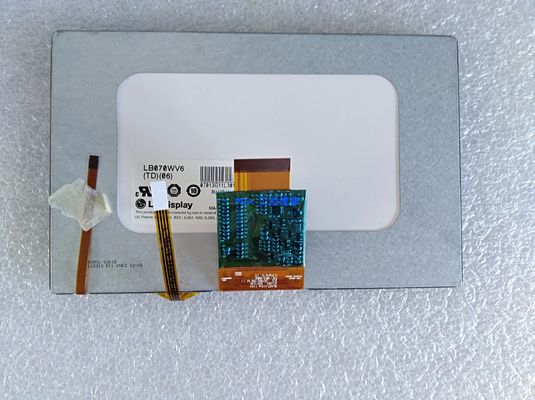

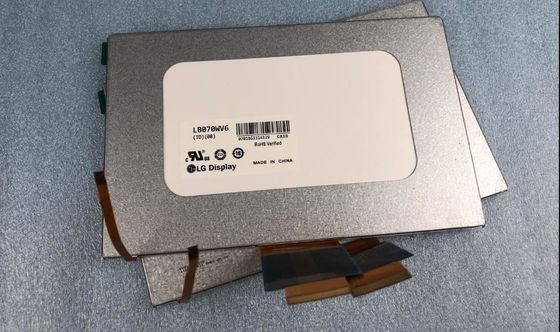

Product Details:
|
| MODEL NUMBER: | LB070WV6-TD08 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 7.0" | BRIGHTNESS: | 350 Cd/m² |
| Lamp Type: | LEDS | RESOLUTION: | 800×480(RGB) [WVGA] 134PPI |
| VIEWING ANGLEG: | 65/65/50/60 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| Highlight: | 134PPI Square Tft Screen,350cd/M2 Square Tft Screen,LB070WV6-TD08 Industrial Lcd Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LB070WV6-TD08 | a-Si TFT-LCD , LCM | LB070WV6 (TD)(08) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Screen Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800×480(RGB), WVGA | RGB Horizontal Stripe | 0.1893×0.0629 mm | 0.1893×0.1887 mm [134PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 151.44×90.576 mm | 158.44×93.526 mm | 165×104.6 mm | 3.3±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 15:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 108/112g (Typ./Max.) | - | Antiglare | ||
| Holes & Brackets : | Without | |||
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800×480(RGB) [WVGA] | RGB Horizontal Stripe | 0.1893×0.1887 [134PPI] | 0.1893×0.0629 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 151.44(H) × 90.576(V) | 158.44(H) × 93.526(V) | 165(H) × 104.6(V) | 3.3±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 108/112g (Typ./Max.) | - | Antiglare | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 7S3P | 3 strings | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 22.4/24.5V (Typ./Max.) | 20/30mA (Typ./Max.) | 1.34/1.47W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 6 pins | 1 pcs | BLE-6PINS-CACACA | |||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 86.7/99.7mA (Typ./Max.) | 0.29W | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 8-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 40 pins | 1 pcs | DRGB-40P1C8B-050A | |||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 40 pcs / box | - | 475×348×182 mm (L×W×H) |
