Product Details:
|

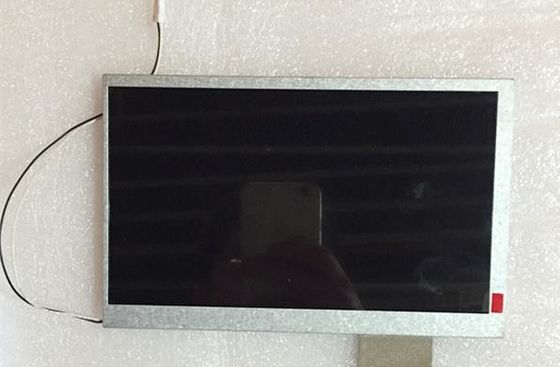

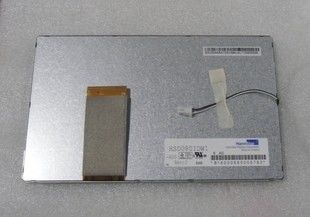

| MODEL NUMBER: | HSD070IDW1-A21 | BRAND: | HannStar |
|---|---|---|---|
| SIZE: | 7.0 | BRIGHTNESS: | 200 Cd/m² |
| Lamp Type: | LEDS | RESOLUTION: | 800(RGB)×480, WVGA, 134PPI |
| VIEWING ANGLEG: | 70/70/50/60 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| Highlight: | 134PPI Square Tft Display,Square Tft Display 200cd/M2,7.0" 800×480 Rgb Tft Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| HSD070IDW1-A21 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | 2.9G (28.4 m/s²) |
| Basic Information : | Luminance | 200 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 5/20 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6638K | White Uniformity | 1.43 (Max.)(9 points) |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.064×0.1805 mm | Pixel Pitch(W×H) | 0.192×0.1805 mm [134PPI] | |
| Physical Size : | Active Viewing | 153.6(W)×86.64(H) mm | Overall Dim. | 165(W)×104(H) mm |
| Bezel Opening | 156.0(W)×89.04(H) mm | Overall Depth | 5.1±0.3 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 130g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 5.4/24.1/0.13/3.5mA (Typ.)(ICC/AIDD/IGH/IGL) | Input Voltage | 3.0/10.0/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6/8-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.7VCC; 0.3V≤VIH≤0.7VCC | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 60 pins | ||||
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3S7P | Life | 20K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 140mA (Typ.) | Input Voltage | 10.5V (Typ.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLE-2PINS-AC | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
