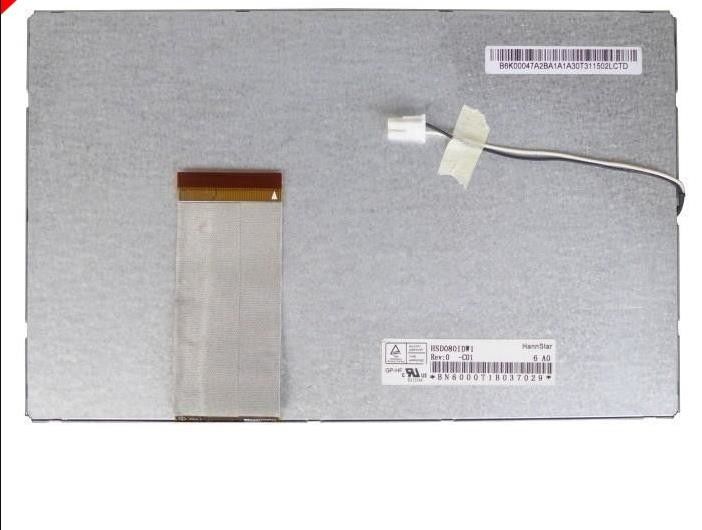

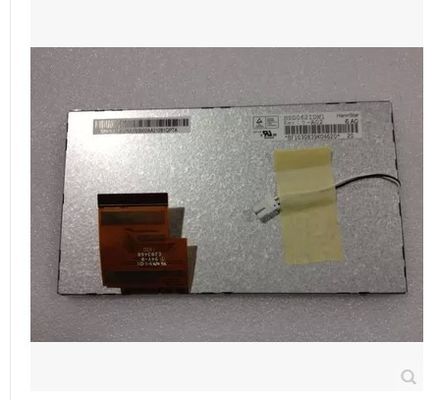

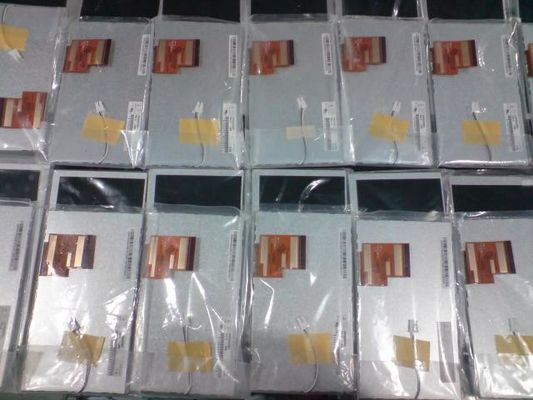

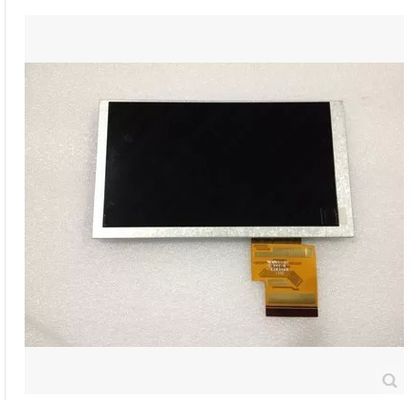

Product Details:
|
| MODEL NUMBER: | HSD062IDW1-A00 | BRAND: | HannStar |
|---|---|---|---|
| SIZE: | 6.2" | BRIGHTNESS: | 400 Cd/m² |
| Lamp Type: | LEDS | RESOLUTION: | 800(RGB)×480 [WVGA] 150PPI |
| VIEWING ANGLEG: | 75/75/70/70 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| High Light: | 150PPI TFT LCD Panel,6.2" 800x480 TFT LCD Panel,HannStar HSD062IDW1-A00 Industrial Lcd Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| HSD062IDW1-A00 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C | 2.9G (28.4 m/s²) |
| Panel Size : | 6.2 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0573×0.1609 mm | 0.1719×0.1609 mm [150PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 137.52×77.232 mm | 140.7×80.4 mm | 155.2×88.2 mm | 5.0±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 120g (Typ.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 75/75/70/70 (Typ.)(CR≥10) | 6 o'clock | 2/6 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.310; Y:0.330 | |
| Luminance Variation : | 1.43 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 12.3/13.6/0.1/0.37mA (Typ.)(ICC/AIDD/IGH/IGL) | 3.3/10.0/15.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | TTL (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 60 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Array | 3S7P | 20K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 140mA (Typ.) | 10.5V (Typ.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLE-2PINS-AC | |
