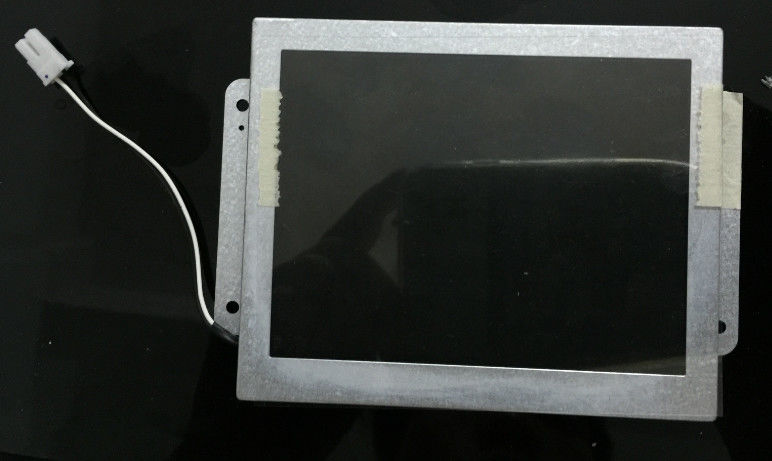

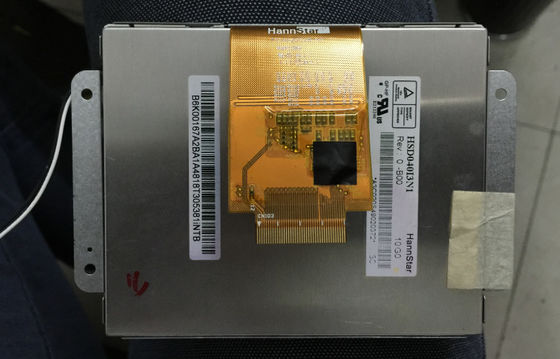

Product Details:
|
| MODEL NUMBER: | HSD040I3N1-B00 | BRAND: | HannStar |
|---|---|---|---|
| SIZE: | 4.0" | BRIGHTNESS: | 4700 Cd/m² |
| Lamp Type: | LEDS | RESOLUTION: | 320(RGB)×240 [QVGA] 99PPI |
| VIEWING ANGLEG: | 60/60/60/40 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| Highlight: | 4700cd/M2 Industrial Lcd Display,99PPI Industrial Lcd Display,4.0" 320×240 Square Tft Display |
||
| Basic Information : | Brand | Model | HSD040I3N1-B00 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 4.0" | Alias | - | |
| Environment : | Storage Temp. | -40 ~~ 95 °C | Operating Temp. | -30 ~~ 80 °C |
| RoHS | Vibration | 2.9G (28.4 m/s²) |
| Panel Size : | 4.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.0855×0.2656 mm | 0.2565×0.2656 mm [99PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 82.08×61.56 mm | - | 112.11×80.51 mm | 8.0/8.3 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (4 pcs) on left, right brackets | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 95.0/105g (Typ./Max.) | - | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 4700 cd/m² (Typ.) | TN, Normally White, Transmissive | 350:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 60/60/60/40 (Typ.)(CR≥10) | 4:30 o'clock | 4/12 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 | |
| Luminance Variation : | 1.43 (Max.)(9 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 12.0mA (Typ.) | 3.3V (Typ.) | 0.06W (Max.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 8-bit) + SPI | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 40 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 420mA (Typ.) | 10.5V (Min.) | 4.41W (Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 2 pins | BLE-2PINS-AC | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 42 pcs / box | - |
