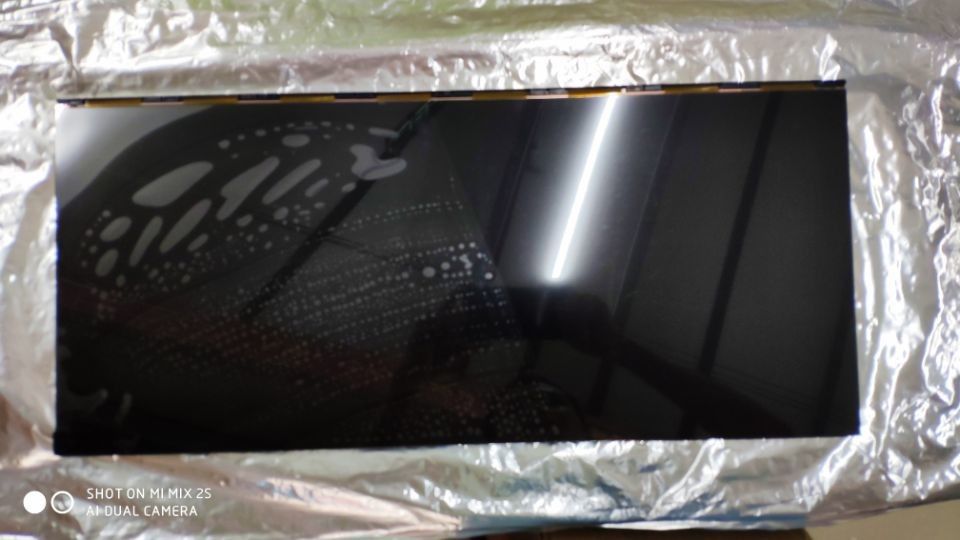

Product Details:
|
| MODEL NUMBER: | LM250WW1-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 25.0 Inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1080, CSHD, 111PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | RGB 250cd/m2 TFT LCD Panel,111PPI TFT LCD Panel,25.0" 2560×1080 Rgb Tft Display |
||

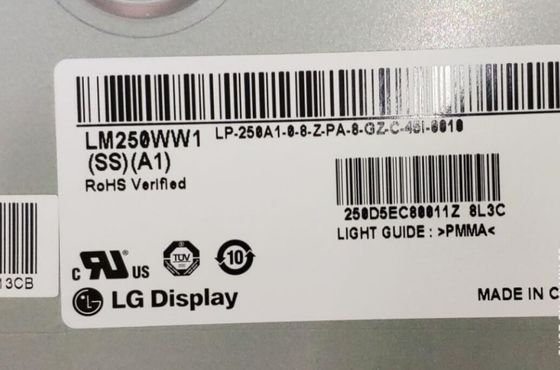

| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LM250WW1-SSA1 | a-Si TFT-LCD , LCM | LM250WW1 (SS)(A1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AH-IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 77% | 100% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 80% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
| Panel Size : | 25.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 2560(RGB)×1080 [CSHD] | RGB Vertical Stripe | 0.2286×0.2286 [111PPI] | 0.0762×0.2286 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 585.216(H) × 246.888(V) | - | 602.2(H) × 271.2(V) | 16.5 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 21:9 (H:V) | 3-side borderless | |

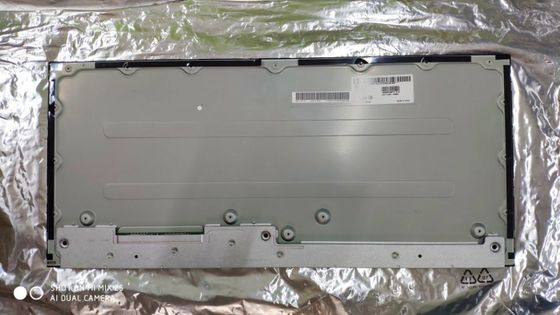

| Mounting : | Rear mounting poles (13-M3) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 2.42/2.54Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 15S4P | 4 strings | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 46.5±3.0V | 80/85mA (Typ./Max.) | 14.9/15.8W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| No | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM06B-SHJH(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 10.0V (Typ.) | 440/550mA (Typ./Max.) | 4.4/5.5W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (4 ch, 8-bit) | Connector | |||||

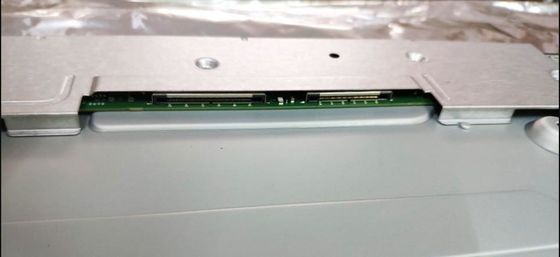

| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GT05L-51S-H38 | 0.5 mm | 51 pins | 1 pcs | ||
| LS Mtron | GT05P-41S-H38-E1500 | 0.5 mm | 41 pins | 1 pcs | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 60 pcs / box | - | 710×365×350 mm (L×W×H) |
