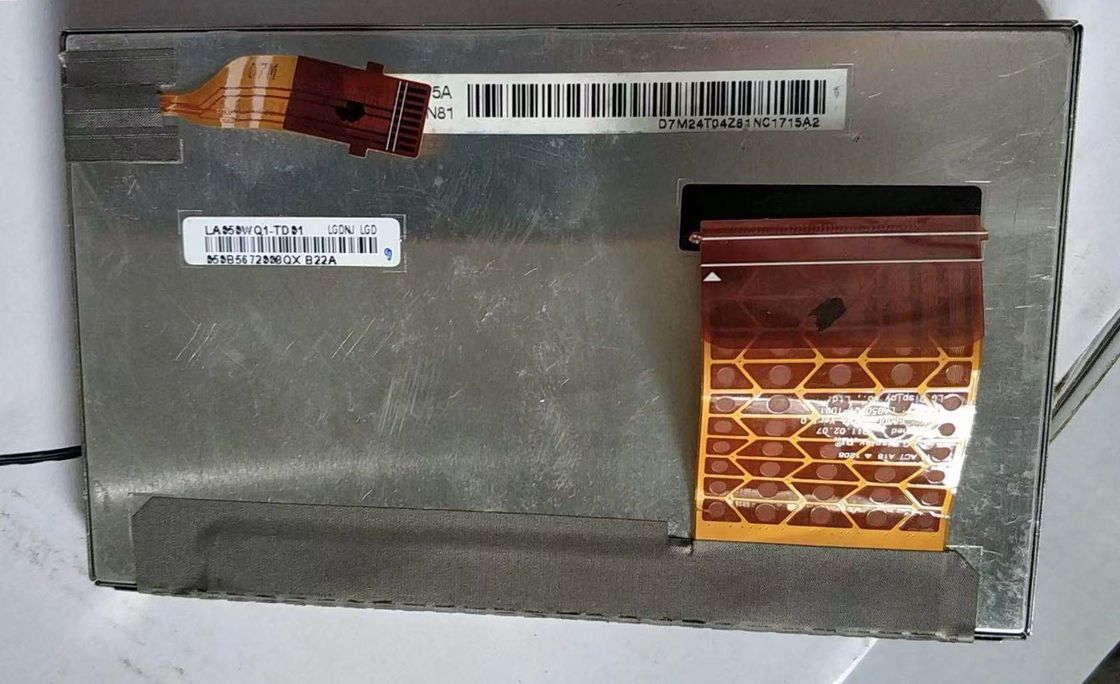

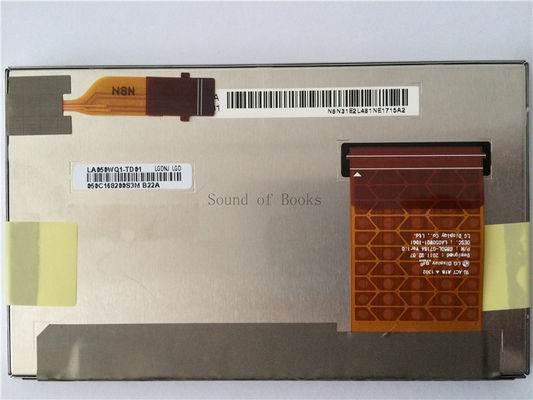

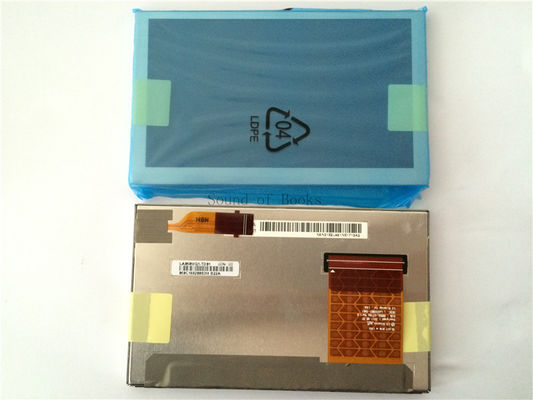

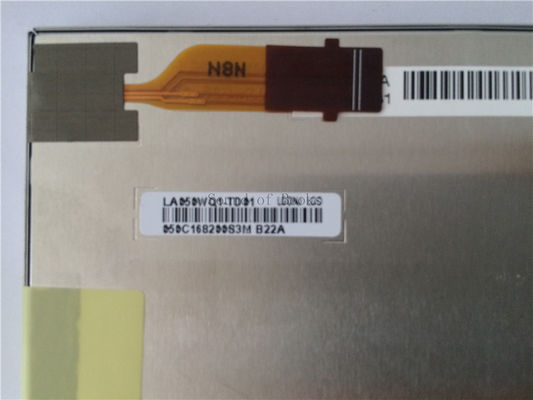

5.0" 480×234 RGB 1100cd/m2 Industrial LCD Panel 106PPI LA050WQ1-TD01

5.0" 480×234 RGB 1100cd/m2 Industrial LCD Panel 106PPI LA050WQ1-TD01
5.0" 480×234 RGB 1100cd/m2 Industrial LCD Panel 106PPI LA050WQ1-TD01 5.0" 480×234 RGB 1100cd/m2 Industrial LCD Panel 106PPI LA050WQ1-TD01 5.0" 480×234 RGB 1100cd/m2 Industrial LCD Panel 106PPI LA050WQ1-TD01 5.0" 480×234 RGB 1100cd/m2 Industrial LCD Panel 106PPI LA050WQ1-TD01

Large Image :  5.0" 480×234 RGB 1100cd/m2 Industrial LCD Panel 106PPI LA050WQ1-TD01

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LA050WQ1-TD01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS
Contact Now

5.0" 480×234 RGB 1100cd/m2 Industrial LCD Panel 106PPI LA050WQ1-TD01

Description
MODEL NUMBER: LA050WQ1-TD01 BRAND: LG DISPLAY
SIZE: 5.0 Inch BRIGHTNESS: 1100CD/M2
Lamp Type: WLED RESOLUTION: 480(RGB)×234, 106PPI
VIEWING ANGLEG: 55/55/55/25 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C
Highlight:

1100cd/m2 Industrial LCD Panel

,

5.0" 480×234 Industrial LCD Panel

,

106PPI Industrial Lcd Screen

LG Display LA050WQ1-TD01 Application Details

Basic Info :
Panel Brand

LA050WQ1-TD01Panel Model
Diagonal Size
5.0"
Application






  •
  •
  •
Panel Type
a-Si TFT-LCD , LCM
Model Alias
LA050WQ1 (TD)(01)
Reliability :
Operating Temp.
-30 ~ 85 °C
Storage Temp.
-40 ~ 95 °C
RoHS State

1.0G (9.8 m/s²)Vibration Rating



LG Display LA050WQ1-TD01 Mechanical Details

Pixel Features :
Pixel Format
480(RGB)×234
Dot Pitch
0.077×0.267 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.231×0.267 mm (H×V) [106PPI]
Mechanical Size :
Display Area
110.88×62.478 mm (H×V)
Bezel Area
112.6×64.2 mm (H×V)
Outline Dim.
124×75.2 mm (H×V)
Outline Depth
6.8/8.3 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Other Features :
Weight
99.0/104g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



LG Display LA050WQ1-TD01 Optical Details

Basic Information :
Brightness
1100 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
55/55/55/25 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
6/9 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.305; Wy:0.315
Color Numbers
262K (6-bit)
Color Temperature
7106K
Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
70%
sRGB
93% coverage
Adobe RGB
71% coverage
DCI-P3
72% coverage
Rec.2020
52% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-



LG Display LA050WQ1-TD01 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
5S2P
Life Time
10K(Min.) (Hours)
Replacement
-
Lamp Shape
2 strings
Position
Edge light type
Lamp Electrical :
Voltage Input
15.0/16.5V (Typ./Max.)
Current Input
65/70mA (Typ./Max.)
Consumption
1.95/2.31W (Typ./Max.)
Interface Features :
Type
FPC
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


1.0 mm
8 pins
1 pcs
BLE-8PINS-AANCCNNN



LG Display LA050WQ1-TD01 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Signal Electrical :
Voltage Input
3.3/10.0V (Typ.)(DVDD/AVDD)
Current Input
0.7/12.0mA (Typ.)(DIDD/AIDD)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.5 mm
60 pins
1 pcs




LG Display LA050WQ1-TD01 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
42 pcs / box - 478×365×195 mm



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
