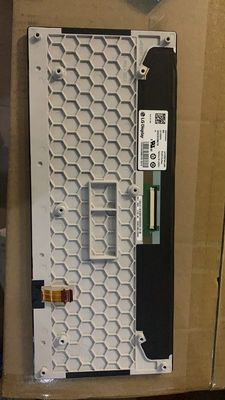

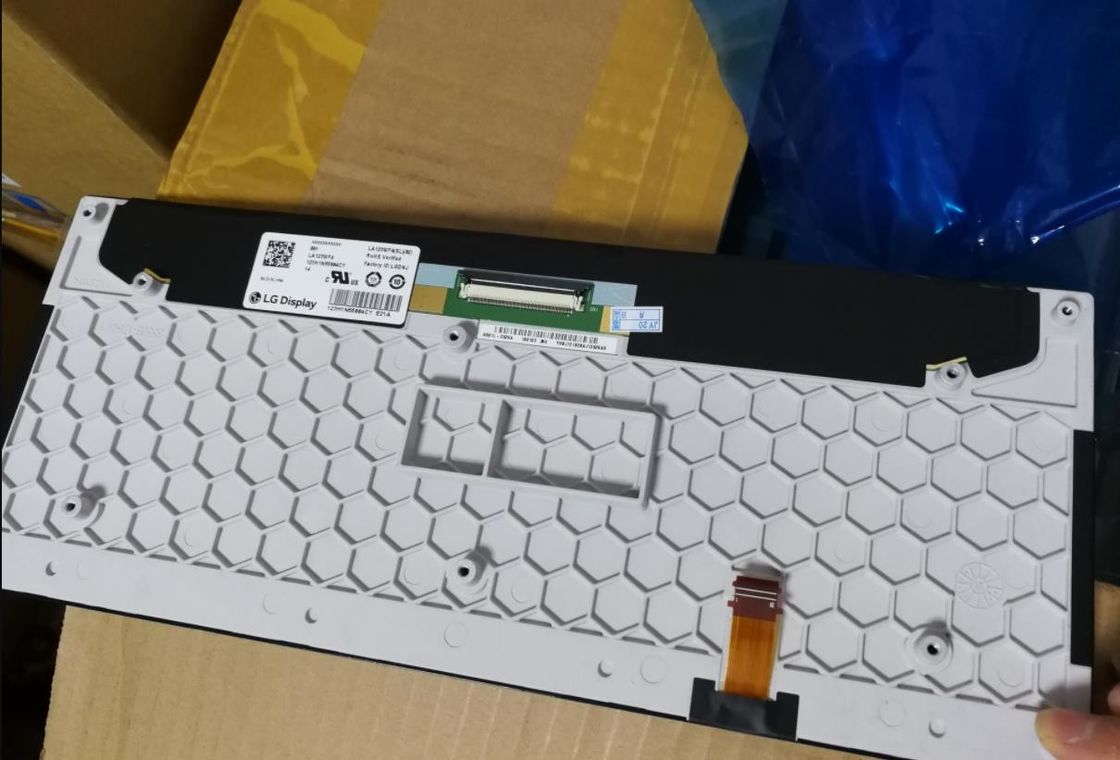

Product Details:
|
| MODEL NUMBER: | LA123WF4-SL01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 12.3INCH | BRIGHTNESS: | 750CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×720, 167PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| Highlight: | 12.3" 1920×720 Industrial Lcd Panel,750cd/m2 Industrial Lcd Panel,167PPI Industrial Lcd Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LA123WF4-SL01 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -40 ~ 85 °C | -40 ~ 95 °C | 3.0G (29.4 m/s²) |
| Screen Size : | 12.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×720 | RGB Vertical Stripe | 0.0507×0.1521 mm | 0.1521×0.1521 mm [167PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 292.032×109.512 mm | 296.03×113.5 mm | 310×128 mm | 10.75/15.9 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 8:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 395/405g (Typ./Max.) | - | Hard coating | ||
| Holes & Brackets : | Rear mounting Pole (6 pcs) | |||
| Screen Size : | 12.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×720 | RGB Vertical Stripe | 0.0507×0.1521 mm | 0.1521×0.1521 mm [167PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 292.032×109.512 mm | 296.03×113.5 mm | 310×128 mm | 10.75/15.9 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 8:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 395/405g (Typ./Max.) | - | Hard coating | ||
| Holes & Brackets : | Rear mounting Pole (6 pcs) | |||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 14K(Min.) | 11S4P | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 20.5/23.6/26.7V (Min./Typ./Max.) | 60/65/70mA (Min./Typ./Max.) | 7.7/9.57/11.62W (Min./Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | FPC | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 20 pins | 0.5 mm | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/13.0/20/-7.5V (Typ.)(VCC/VDD/VGH/VGL) | 280/170/0.6/0.68mA (Max.)(ICC/IDD/VGH/VGL) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| IRISO | 9688S-60A-GFA | 1 pcs | 60 pins | 0.5 mm | ||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 27 pcs / box | - | 543×315×408 mm (L×W×H) |
