Product Details:
|

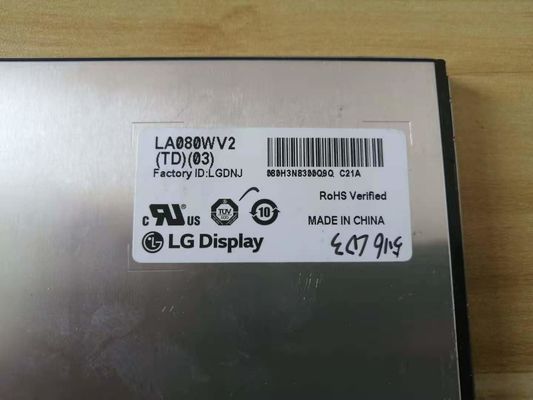

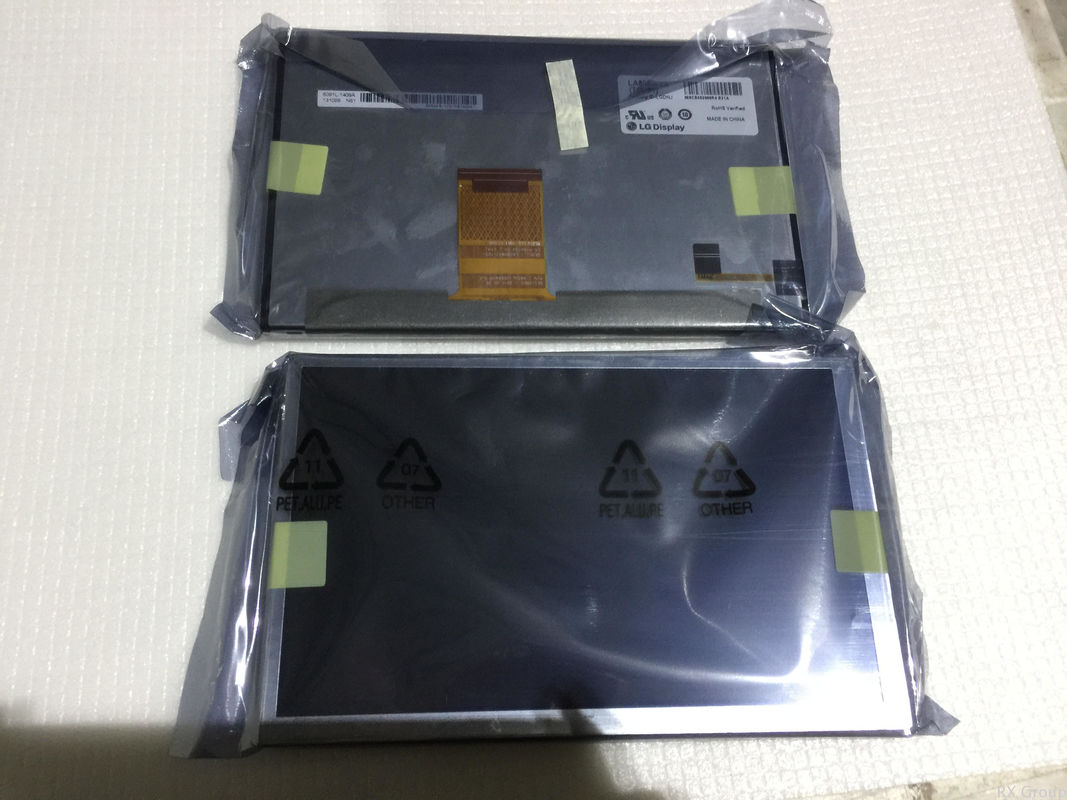

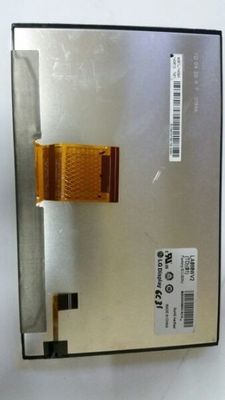

| MODEL NUMBER: | LA080WV2-TD01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 8.0INCH | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×480 (WVGA) 116PPI |
| Active Area(mm): | 176.64 × 99.36 (H×V) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 70 °C |
| Highlight: | 250cd/m2 WLED TFT LCD Panel,TFT LCD Panel 116PPI,800×480 WLED Industrial Lcd Panel |
||
| Basic Information : | Brand | Model | LA080WV2-TD01 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 8.0" | Alias | LA080WV2 (TD)(01) | |
| Environment : | Storage Temp. | -30 ~~ 85 °C | Operating Temp. | -30 ~~ 70 °C |
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.0736×0.2070 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2208×0.2070 (H×V) [116PPI] | |
| Mechanical Size : | Active Area(mm) | 176.64(H) × 99.36(V) | Bezel Area(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | - | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | - | Contrast Ratio | - |
|---|---|---|---|---|
| Viewing Angle | - | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | - | |
| Color Performance : | White Coordinate | - | Display Colors | 262K (6-bit) |
| Basic Information : | Luminance(cd/m²) | - | Contrast Ratio | - |
|---|---|---|---|---|
| Viewing Angle | - | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | - | |
| Color Performance : | White Coordinate | - | Display Colors | 262K (6-bit) |
| Frame Rate : | 60Hz |
|---|
with a built-in WLED backlight, without touch screen. LA080WV2-TD01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, with surface treament of Antiglare. As a TN, Normally White, Transmissive LCM product, LA080WV2-TD01 can provides . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type. LA080WV2-TD01 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LA080WV2-TD01 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
