Product Details:
|
| MODEL NUMBER: | LB048Q01-TD01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 4.8 Inch | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 240(RGB)×257, 73PPI |
| VIEWING ANGLEG: | 70/70/50/60 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | 240×257.73 TFT LCD Panel,1.56W TFT LCD Panel,73PPI TFT LCD Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|

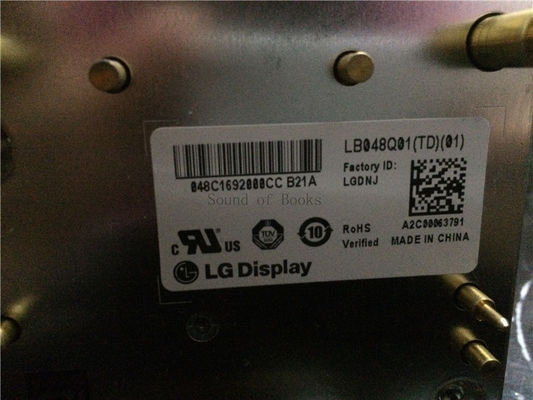

| LB048Q01-TD01 | a-Si TFT-LCD , LCM | LB048Q01 (TD)(01) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -40 ~ 85 °C | -40 ~ 95 °C | 3.0G (29.4 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 70/70/50/60 (Typ.)(CR≥10) | 16/16 (Max.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 610 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7608K | 262K (6-bit) | X:0.298; Y:0.313 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 63% | 83% | 65% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 65% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.18/1.25 (Typ./Max.)(9 points) | ||
| Panel Size : | 4.8" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 240(RGB)×257 | RGB Vertical Stripe | 0.3459×0.3459 [73PPI] | 0.1153×0.3459 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 83.016(H) × 88.922(V) | 85.0(H) × 90.9(V) | 93.1(H) × 100.8(V) | 13.1/34.4 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 1:1 (H:V) | ||

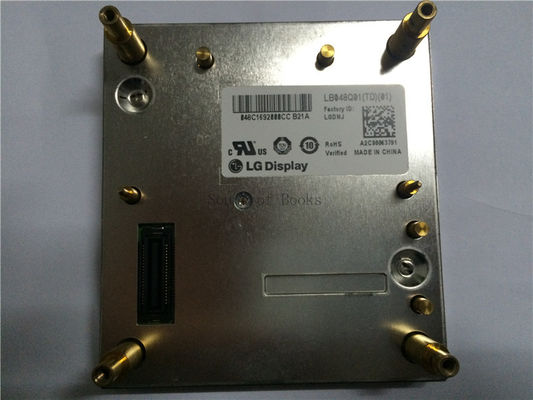

| Mounting : | Rear mounting Pole (4-M3) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 195/200g (Typ./Max.) | - | |||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 2S3P | 3 strings | 20K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 5.76/6.5V (Typ./Max.) | 75/80mA (Typ./Max.) | 1.3/1.56W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 300/400mA (Typ./Max.) | 0.99/1.32W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| IRISO | IMSA-9827S-40Y907 | 0.8 mm | 40 pins | 1 pcs | ||
