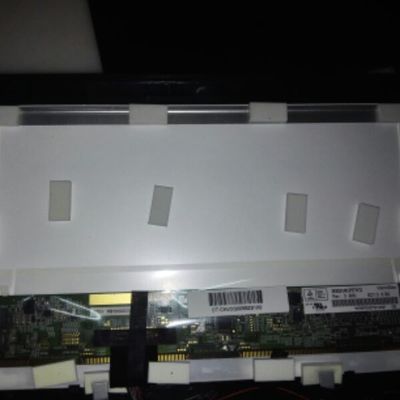

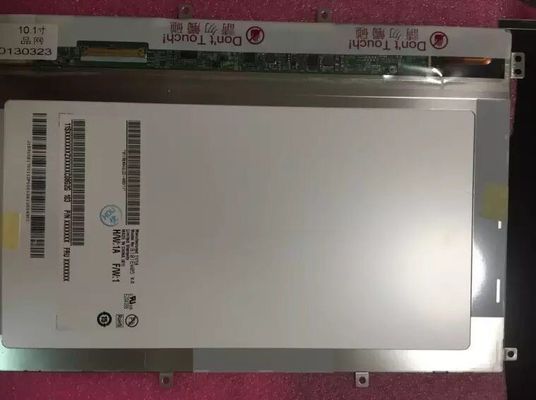

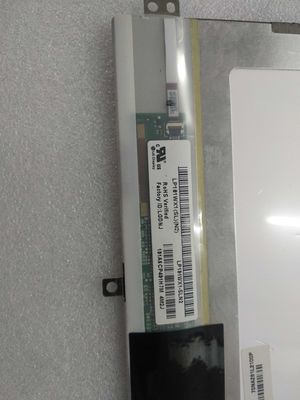

Product Details:
|
| MODEL NUMBER: | LP101WS1-TLB2 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 30/30/10/20 (Min.)(CR≥10) | RESOLUTION: | 1024(RGB)×576 (WSVGA) 116PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 200CD/M2 |
| SIZE: | 10.1INCH | BRAND: | LG.Philips LCD |
| High Light: | 1024×576 TFT LCD Panel,116PPI TFT LCD Panel,LP101WS1-TLB2 Square Tft Display |
||
| Basic Information : | Manufacturer | Panel Model 5 Compatible | Panel Type | Alias |
|---|---|---|---|---|
| LP101WS1-TLB2 | a-Si TFT-LCD , LCM | LP101WS1 (TL)(B2), LGD01B9 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ |
LCD LP101WS1-TLB2 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 200 (Typ.) | 30/30/10/20 (Min.)(CR≥10) | 16 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 300 : 1 (Min.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 45% | 63% | 47% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 47% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.40/1.60 (Typ./Max.)(13 po | ||
LCD LP101WS1-TLB2 Mechanical Features
| Panel Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×576 [WSVGA] | RGB Vertical Stripe | 0.2175×0.2175 [116PPI] | 0.0725×0.2175 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 222.72(H) × 125.28(V) | 226.0(H) × 128.7(V) | 235(H) × 143(V) | 5.2 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Wedge (PCBA Bent, T≥5.2mm) | |
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 190g (Max.) | - | Ant | ||
LCD LP101WS1-TLB2 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 10K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 28.8/30.6V (Typ./Max.) | 19mA (Typ.) | 1.64/1.74W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 5.0V | ||||||
LCD LP101WS1-TLB2 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 250/280mA (Typ./Max.) | 0.82/0.93W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (1 ch, 6-bit) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| I-PEX | 20455-040E-02 | 0.5 mm | 40 pins | 1 pcs | LVDS-40P1C6 | |
LCD LP101WS1-TLB2 Packing Features
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 40 pcs / box | - | 395×390×309 mm (L×W×H) |
