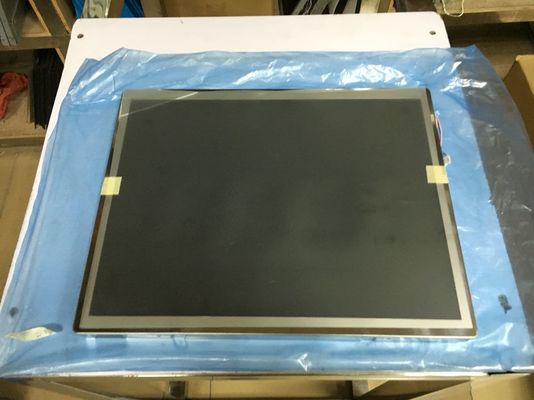

Product Details:
|

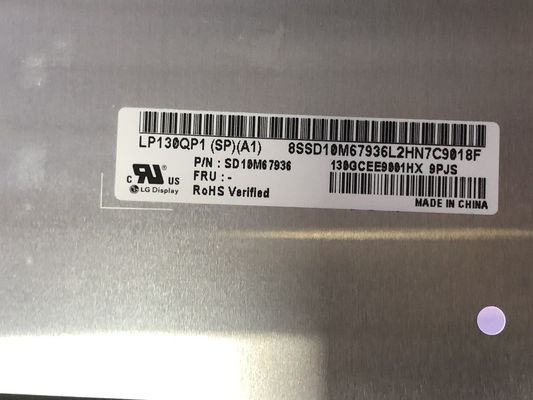

| MODEL NUMBER: | LP130QP1-SPA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 13.0INCH | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3000(RGB)×2000 277PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WLED 3000×2000 TFT LCD Panel,277PPI TFT LCD Panel,LP130QP1-SPA1 Square Tft Display |
||
| Basic Info : | Panel Brand | Panel Model | LP130QP1-SPA1 | |
|---|---|---|---|---|
| Diagonal Size | 13.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LGD0582 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.0G (9.8 m/s²) |
| Pixel Features : | Pixel Format | 3000(RGB)×2000 | Dot Pitch | 0.0305×0.0915 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.0915×0.0915 mm (H×V) [277PPI] | |
| Mechanical Size : | Display Area | 274.5×183 mm (H×V) | Bezel Area | - |
| Outline Dim. | 279.5×192.8 mm (H×V) | Outline Depth | 1.8/3.85 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:10 (H:V) | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 158g (Typ.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 12K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.5/12.0/21.0V (Min./Typ./Max.) | Current Input | 269/277mA (Typ./Max.) | ||
| Consumption | 3.23/3.32W (Typ./Max.) | |||||
| Signal Systerm : | eDP (4 Lanes), HBR2 (5.4G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 364/400mA (Typ./Max.) | ||
| Consumption | 1.2/1.32W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | HD1S040HA2 | 0.5 mm | 40 pins | 1 pcs | ||

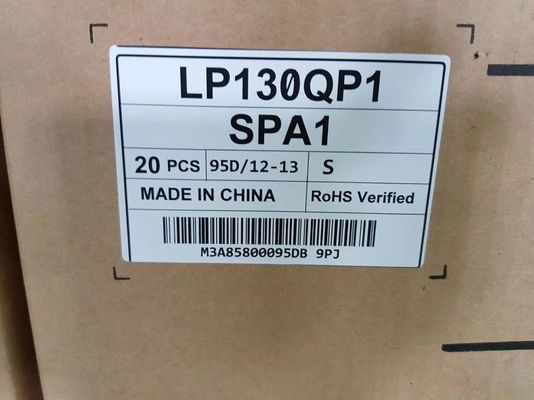

| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 34 pcs / box | - | 485×372×245 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
