Product Details:
|

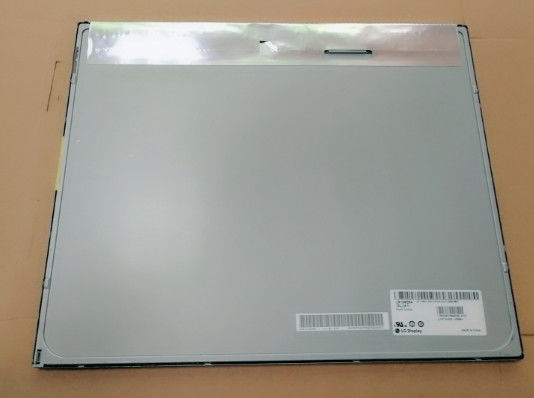

| MODEL NUMBER: | LM190E09-TLK1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 19.0 Inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×1024, SXGA, 86PPI |
| VIEWING ANGLEG: | 85/85/75/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | SXGA 1280×1024 TFT LCD Panel,TFT LCD Panel 86PPI,LM190E09-TLK1 Square LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | LM190E09-TLK1 | |
|---|---|---|---|---|
| Diagonal Size | 19.0" | Application | ||

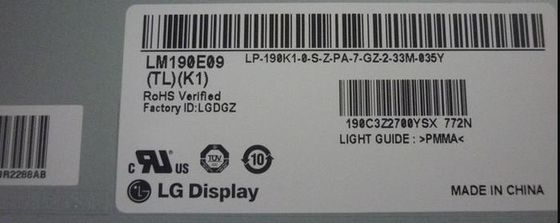

| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM190E09 (TL)(K1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1280(RGB)×1024 [SXGA] | Dot Pitch | 0.098×0.294 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.294×0.294 mm (H×V) [86PPI] | |
| Mechanical Size : | Display Area | 376.32×301.056 mm (H×V) | Bezel Area | 380.3×305.0 mm (H×V) |
| Outline Dim. | 396×324 mm (H×V) | Outline Depth | 9.9 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 5:4 (H:V) | Shape Style | Normal bezel | |
| Other Features : | Weight | 1.61/1.69Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 1.3/3.7 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 15S2P | Position | Edge light type (Right side) | |
| Lamp Electrical : | Voltage Input | 45±3V | Current Input | 80/85mA (Typ./Max.) | ||
| Consumption | 7.2/7.7W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM06B-SHJH(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CNAANC | |
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 931/1163mA (Typ./Max.) | ||
| Consumption | 4.65/5.81W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| UJU | IS100-L30O-C23 | 1.0 mm | 30 pins | 1 pcs | ||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 11 pcs / box | - | 418×365×492 mm |
