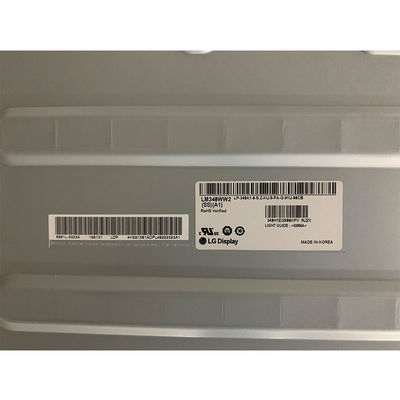

Product Details:
|
| MODEL NUMBER: | LM340WW1-SSA1 | TEMPERATURE RANGE: | 2560(RGB)×1080 (CSHD) 81PPI |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | RESOLUTION: | 2560(RGB)×1080 (CSHD) 81PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 300CD/M2 |
| SIZE: | 34 Inch | BRAND: | LG DISPLAY |
| Highlight: | 2560×1080 TFT LCD Panel,TFT LCD Panel 81PPI,LM340WW1-SSA1 TFT LCD Display |
||
| Basic Detail : | Manufacturer | Model Name | LM340WW1-SSA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM340WW1 (SS)(A1) | |
| Panel Size | 34 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AH-IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 77% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 2560(RGB)×1080 [CSHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.105×0.310 mm | Pixel Pitch(W×H) | 0.315×0.310 mm [81PPI] | |
| Physical Size : | Active Viewing | 799.8(W)×334.8(H) mm | Overall Dim. | 820.8(W)×361(H) mm |
| Bezel Opening | - | Overall Depth | 11.8/19.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 21:9 | Shape Style | 3-side borderless | |
| Fixation : | Rear mounting holes (13-M3) | |||
| Other Detail : | Mass | 3.56/3.74Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 0.54/0.67A (Typ./Max.) | Input Voltage | 10.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 5.4/6.7W (Typ./Max.) | Signal Interface | LVDS (4 ch, 8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT05P-51S-H38-E1500 | 1 pcs | 0.5 mm | 51 pins | ||
| LS Mtron | GT05P-41S-H38-E1500 | 1 pcs | 0.5 mm | 41 pins | ||
| Lamp Features: | Lamp Shape | 4 strings × 2CN | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 4 strings × 2CN | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 110/115mA (Typ./Max.) | Input Voltage | 33.3+2.2V | ||
| Consumption | 29.3/31.3W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SHJH(HF) | 2 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
