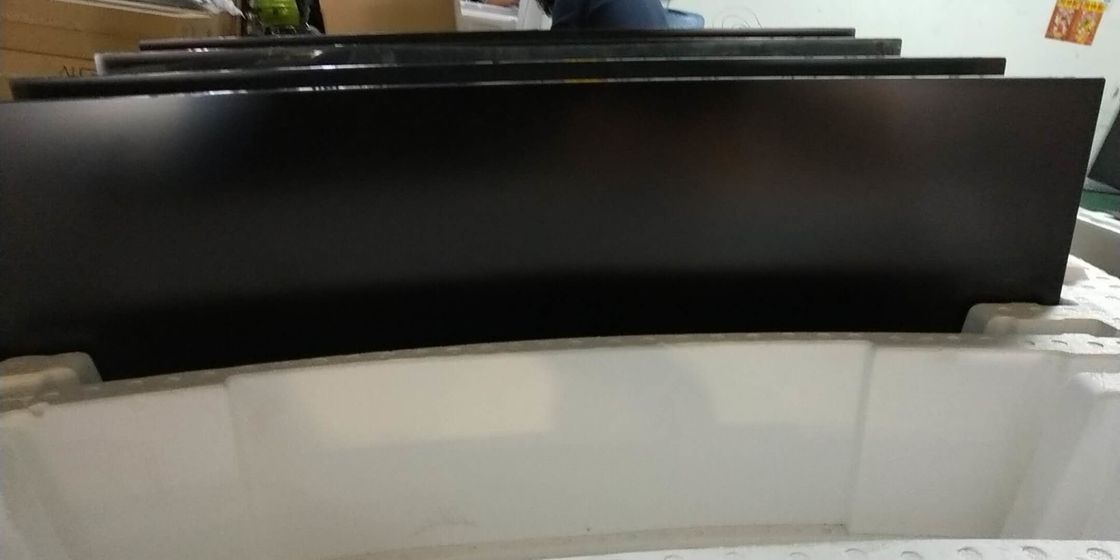

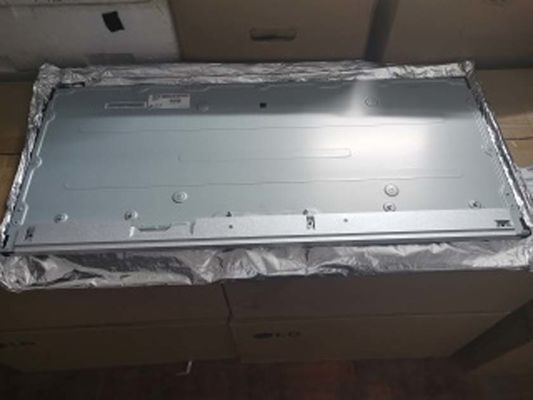

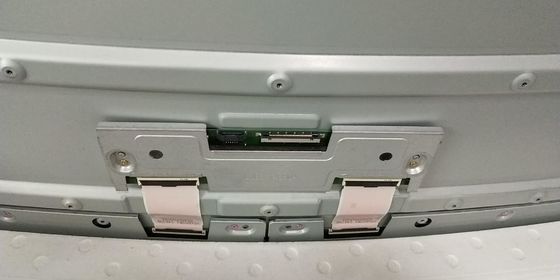

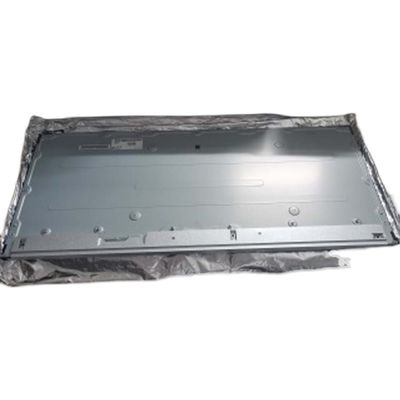

LVDS 34" 2560×1080 CSHD 81PPI TFT LCD Panel 300cd/m2 LM340WW1-SSC1

LVDS 34" 2560×1080 CSHD 81PPI TFT LCD Panel 300cd/m2 LM340WW1-SSC1
LVDS 34" 2560×1080 CSHD 81PPI TFT LCD Panel 300cd/m2 LM340WW1-SSC1 LVDS 34" 2560×1080 CSHD 81PPI TFT LCD Panel 300cd/m2 LM340WW1-SSC1 LVDS 34" 2560×1080 CSHD 81PPI TFT LCD Panel 300cd/m2 LM340WW1-SSC1 LVDS 34" 2560×1080 CSHD 81PPI TFT LCD Panel 300cd/m2 LM340WW1-SSC1

Large Image :  LVDS 34" 2560×1080 CSHD 81PPI TFT LCD Panel 300cd/m2 LM340WW1-SSC1

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM340WW1-SSC1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS
Contact Now

LVDS 34" 2560×1080 CSHD 81PPI TFT LCD Panel 300cd/m2 LM340WW1-SSC1

Description
MODEL NUMBER: LM340WW1-SSC1 TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) RESOLUTION: 2560(RGB)×1080 [CSHD] 81PPI
Lamp Type: WLED BRIGHTNESS: 300CD/M2
SIZE: 34 Inch BRAND: LG DISPLAY
Highlight:

LVDS 34" TFT LCD Panel

,

CSHD 81PPI TFT LCD Panel

,

LM340WW1-SSC1 Industrial TFT Display

LG Display LM340WW1-SSC1 Application Details

Basic Info :
Panel Brand

LM340WW1-SSC1Panel Model
Diagonal Size
34"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LM340WW1 (SS)(C1)
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C



LG Display LM340WW1-SSC1 Mechanical Details

Pixel Features :
Pixel Format
2560(RGB)×1080, CSHD
Dot Pitch
0.105×0.310 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.315×0.310 mm (H×V) [81PPI]
Mechanical Size :
Display Area
799.8×334.8 mm (H×V)
Bezel Area
-
Outline Dim.
820.8×361 mm (H×V)
Outline Depth
11.8/19.8 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
21:9 (H:V)
Shape Style

Holes & Brackets :
Rear mounting holes (13-M3)
Other Features :
Weight
3.96/3.76/4.16Kgs (Min./Typ./Max.)
Surface
Antiglare, Hard coating (3H)





LG Display LM340WW1-SSC1 Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AH-IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
14 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (8-bit)
Color Temperature
6485K
Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
77%
sRGB
100% coverage
Adobe RGB
78% coverage
DCI-P3
80% coverage
Rec.2020
58% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM340WW1-SSC1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
30K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type (Bottom side)
Lamp Electrical :
Voltage Input
51.3±3.4V
Current Input
110/115mA (Typ./Max.)
Consumption
22.6/24.1W (Typ./Max.)
Interface Features :
Type
Connector
Position

NoLamp Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
SM06B-SHJH(HF)
1.0 mm
6 pins
2 pcs
BLE-6PINS-CCAACC



LG Display LM340WW1-SSC1 Interface Detail

Signal Systerm :
LVDS (4 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
10.0V (Typ.)
Current Input
0.46/0.58A (Typ./Max.)
Consumption
4.6/5.75W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
LS Mtron
GT05S-51S-H38
0.5 mm
51 pins
1 pcs

LS Mtron
GT05S-41S-H38
0.5 mm
41 pins
1 pcs



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
