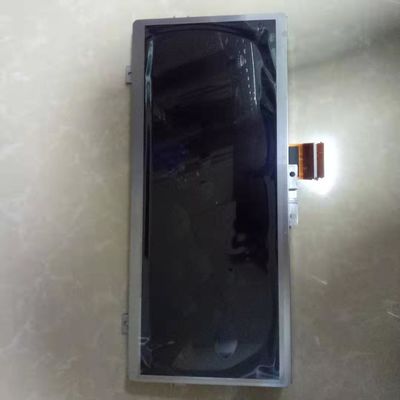

Product Details:
|
| MODEL NUMBER: | LA103DV1-SL01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 10.3 Inch | BRIGHTNESS: | 650CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×480 [DVGA] 133PPI |
| Active Area: | 243.84(H)×91.44(V) | TEMPERATURE RANGE: | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| Highlight: | 10.3in TFT LCD Panel,TFT LCD Panel 133PPI,LA103DV1-SL01 Lcd Display Panels |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LA103DV1-SL01 | a-Si TFT-LCD , LCM | LA103DV1 (SL)(01) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -40 ~ 85 °C | -40 ~ 90 °C | 3.0G (29.4 m/s²) |
| Screen Size : | 10.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×480, DVGA | RGB Vertical Stripe | 0.0635×0.1905 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 243.84×91.44 mm | 247.9×94.44 mm | 257.7×126.3 mm | 12.6/20.9 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 8:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 490/495g (Typ./Max.) | - | - | ||
| Holes & Brackets : | Face mounting holes (4 pcs) on up, down slugs | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 650 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | - | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6296K | 16.7M (8-bit) | X:0.318; Y:0.318 |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 8S4P | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 21.6/24/24.8V (Min./Typ./Max.) | 80/85mA (Typ./Max.) | 7.68/8.43W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 400/480mA (Typ./Max.) | 1.49/1.59W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||

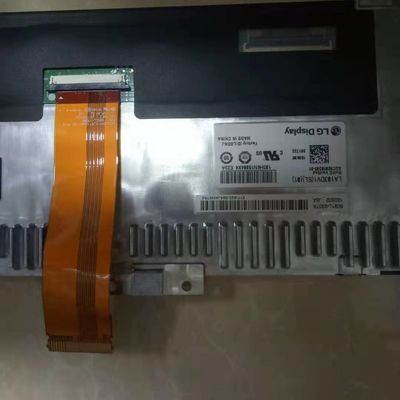

| LVDS (1 ch, 8-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 50 pins | |||||
