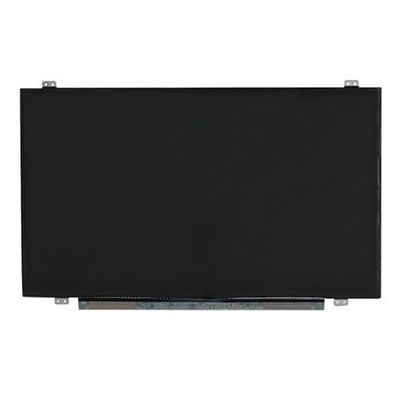

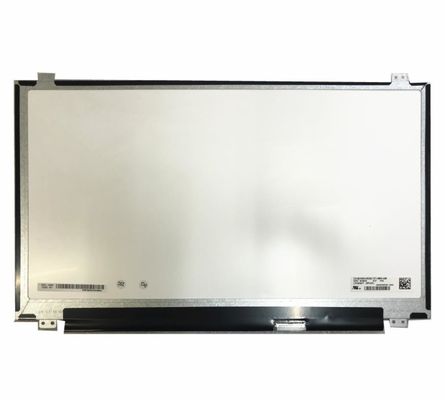

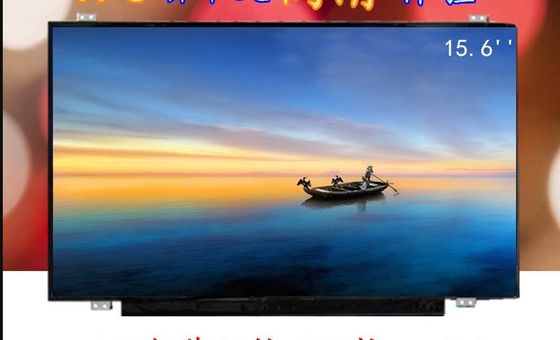

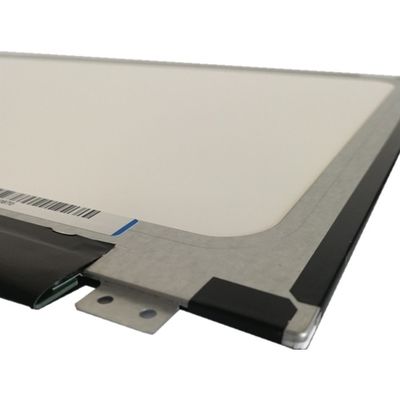

15.6" 1920×1080 220cd/m2 141PPI WLED TFT Panel LP156WF7-SPN1 80/80/80/80 (Typ.)(CR≥10)

15.6" 1920×1080 220cd/m2 141PPI WLED TFT Panel LP156WF7-SPN1 80/80/80/80 (Typ.)(CR≥10)
15.6" 1920×1080 220cd/m2 141PPI WLED TFT Panel LP156WF7-SPN1 80/80/80/80 (Typ.)(CR≥10) 15.6" 1920×1080 220cd/m2 141PPI WLED TFT Panel LP156WF7-SPN1 80/80/80/80 (Typ.)(CR≥10) 15.6" 1920×1080 220cd/m2 141PPI WLED TFT Panel LP156WF7-SPN1 80/80/80/80 (Typ.)(CR≥10) 15.6" 1920×1080 220cd/m2 141PPI WLED TFT Panel LP156WF7-SPN1 80/80/80/80 (Typ.)(CR≥10)

Large Image :  15.6" 1920×1080 220cd/m2 141PPI WLED TFT Panel LP156WF7-SPN1 80/80/80/80 (Typ.)(CR≥10)

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LP156WF7-SPN1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS
Contact Now

15.6" 1920×1080 220cd/m2 141PPI WLED TFT Panel LP156WF7-SPN1 80/80/80/80 (Typ.)(CR≥10)

Description
MODEL NUMBER: LP156WF7-SPN1 TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
VIEWING ANGLEG: 80/80/80/80 (Typ.)(CR≥10) RESOLUTION: 1920(RGB)×1080, FHD, 141PPI
Lamp Type: WLED BRIGHTNESS: 220CD/M2
SIZE: 15.6 Inch BRAND: LG DISPLAY
Highlight:

220cd/m2 WLED TFT Panel

,

141PPI WLED TFT Panel

,

LP156WF7-SPN1 TFT LCD Screen

LG Display LP156WF7-SPN1 Application Details

Basic Information :
Brand

LP156WF7-SPN1Model
Type
a-Si TFT-LCD , LCM
Used For

15.6 inchScreen Size
Alias
LP156WF7 (SP)(N1), LGD0546
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

1.0G (9.8 m/s²)Vibration



LG Display LP156WF7-SPN1 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.05975×0.17925 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :
Active Area(mm)
344.16(H) × 193.59(V)
Bezel Area(mm)
-
Outline Dim.(mm)
359.5(H) × 223.8(V)
Depth(mm)
3.05/3.2 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Touch Panel :
Touch Points
10 points
Touch Panel
In-Cell Touch
TP Controller
With touch controller
Touch Signal
USB
Mounting :
Face mounting holes (8 pcs) on up, down slugs
Other Spec :
Weight
350g (Max.)
Treatment
Glare (Haze 0%)



LG Display LP156WF7-SPN1 Optical Details

Basic Information :
Luminance(cd/m²)
220 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K (6-bit)
Color Temperature
6485K
White Uniformity
1.40/1.60 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
48%
sRGB
68% coverage
Adobe RGB
50% coverage
DCI-P3
50% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





LG Display LP156WF7-SPN1 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
303/324mA (Typ./Max.)
Consumption
1.0/1.06W (Typ./Max.)
Signal Type :
eDP (2 Lanes), HBR1 (2.7G/lane)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
LS Mtron
GT05Q-40S-H10
0.5 mm
40 pins
1 pcs




LG Display LP156WF7-SPN1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
15K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5.0/12.0/21.0V (Min./Typ./Max.)
Current Supply
228/233mA (Typ./Max.)
Consumption
2.75/2.8W (Typ./Max.)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
