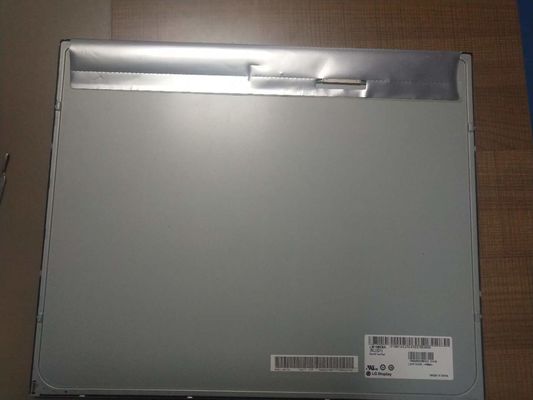

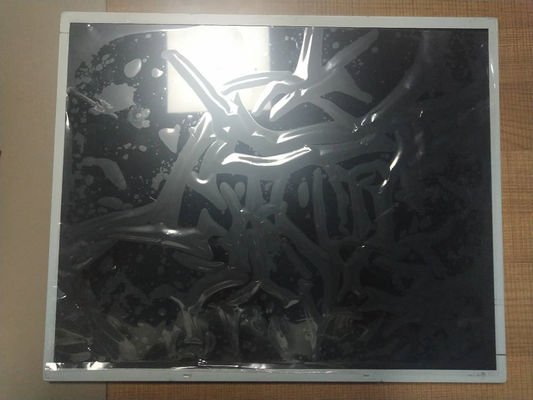

Product Details:
|
| MODEL NUMBER: | LM190E0A-SLD1 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | RESOLUTION: | 1280(RGB)×1024 (SXGA) 86PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 250CD/M2 |
| SIZE: | 19.0INCH | BRAND: | LG DISPLAY |
| Highlight: | 86PPI WLED LCD Screen,250cd/m2 WLED LCD Screen,LM190E0A-SLD1 WLED LCD Display |
||

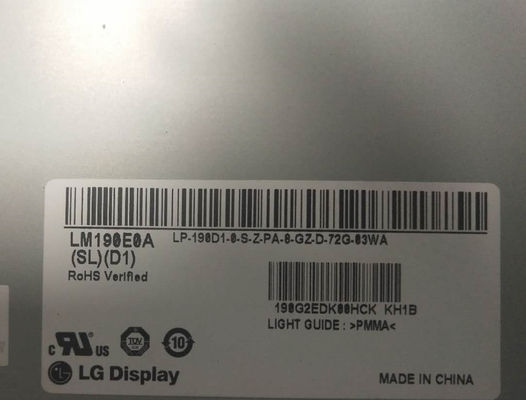

| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LM190E0A-SLD1 | a-Si TFT-LCD , LCM | LM190E0A (SL)(D1) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | AH-IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 95% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 76% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Right side) | 30K(Min.) | 19S2P | 2 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 56.1±3.8V | 70/75mA (Typ./Max.) | 7.8/8.4W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| YEONHO | 10035WR-H06D | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CNAANC | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 430/540mA (Typ./Max.) | 2.15/2.70W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| UJU | IS100-L30O-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160B | |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 14 pcs / box | - | 418×365×492 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
