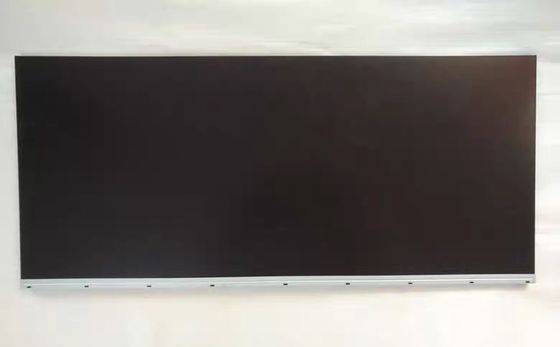

Product Details:
|
| MODEL NUMBER: | LD290EJS-FPN1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 28.6INCH | BRIGHTNESS: | 500CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×540 69PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 45 °C |
| Signal Interface: | LVDS | ||
| Highlight: | LD290EJS-FPN1 Lcd Video Module,500cd/m2 Industrial TFT Display,VGA Touch Lcd Video Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LD290EJS-FPN1 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 45 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 89/89/89/89 (Min.)(CR≥10) | - | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | - | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 16.7M (8-bit) |
| Panel Size : | 28.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×540 | RGB Horizontal Stripe | 0.36375×0.36375 [69PPI] | 0.12125×0.36375 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 698.4(H) × 196.43(V) | - | 712.8(H) × 213.44(V) | 16 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape / Portrait | >3:1 (H:V) | ||
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
| - | - | - | In-Cell Touch | |
| Mounting : | Side mounting holes (17 pcs) on left, right, up, down bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 2.80Kgs (Typ.) | - | Antiglare, Hard coating (4H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Typ.) | - |
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 6 pcs / box | 17.6 Kgs | 850×260×280 mm (L×W×H) |
which was released out on 9 2 2020, LD290EJS-FPN1 supports display 1920(RGB)×540 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 698.4(W)×196.43(H) mm, outline size of 712.8(W)×213.44(H) mm, with surface treament of Antiglare, Hard coating (4H), net weight of 2.80Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, LD290EJS-FPN1 can provides 500 cd/m² display brightness, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LD290EJS-FPN1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
