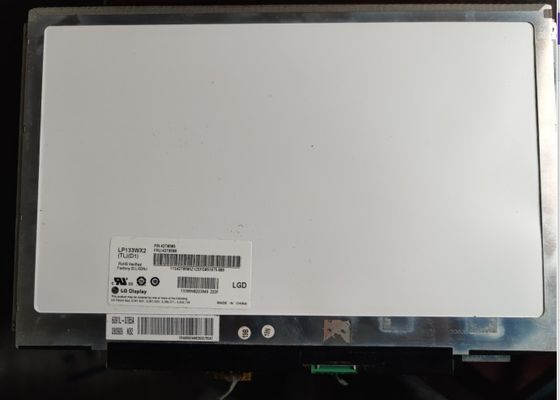

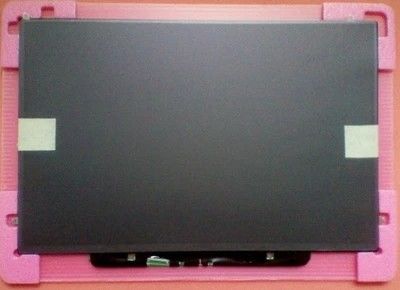

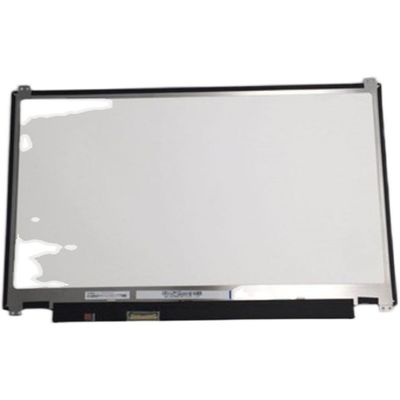

Product Details:
|
| MODEL NUMBER: | LP133WX2-TLG5 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 70/70/60/60 (Typ.)(CR≥10) | RESOLUTION: | 1280(RGB)×800 (WXGA) 113PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 275CD/M2 |
| SIZE: | 13.3 Inch | BRAND: | LG DISPLAY |
| Highlight: | 275cd/m2 Lcd Video Module,WVGA Industrial TFT Display,LP133WX2-TLG5 LG Display |
||
| Basic Information : | Brand Name | Model Name 11 Compatible | Type | Model Alias |
|---|---|---|---|---|
| LP133WX2-TLG5 | a-Si TFT-LCD , LCM | LP133WX2 (TL)(G5), APP9CBE | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 13.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×800, WXGA | RGB Vertical Stripe | 0.0745×0.2235 mm | 0.2235×0.2235 mm [113PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 286.08×178.8 mm | 289.38×182.5 mm | 307.38×203.1 mm | 3.68 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:10 | Landscape type | Flat (PCBA Flat, T3.4~4.0mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 310g (Max.) | - | Glare (Haze 0%), Hard coating (2H), Antireflection | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 275 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/60/60 (Typ.)(CR≥10) | 16 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 69% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43/1.67 (Typ./Max.)(160 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10K(Min.) | 9S6P | 6 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 5/19/20mA (Min./Typ./Max.) | 3.2/3.5W (Typ./Max.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 230/265mA (Typ./Max.) | 0.76/0.88W (Typ.)(Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6-bit) | Connector | - | ||||

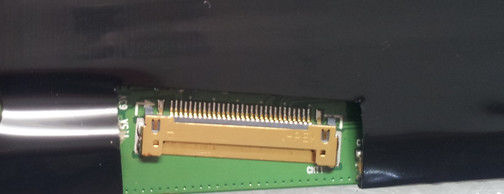

| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20474-030E-12 | 1 pcs | 30 pins | 0.4 mm | LVDS-30P1C6B-070B | |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 20 pcs / box | - | 422×340×257 mm (L×W×H) |
