Product Details:
|

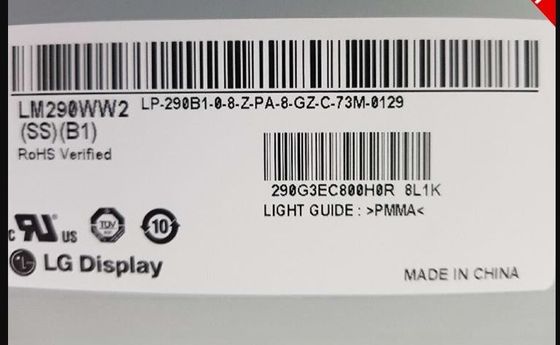

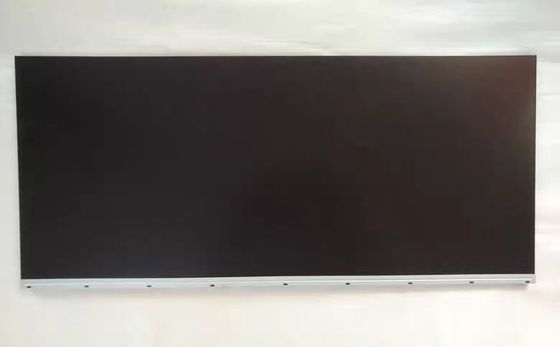

| MODEL NUMBER: | LM290WW2-SSB1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 29.0INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1080 [CSHD] 96PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 300cd/m2 Lcd Video Module,LM290WW2-SSB1 Industrial TFT Display,VGA Touch Lcd Video Display |
||
| Basic Info : | Panel Brand | Panel Model | LM290WW2-SSB1 | |
|---|---|---|---|---|
| Diagonal Size | 29.0" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM290WW2 (SS)(A1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 2560(RGB)×1080 [CSHD] | Dot Pitch | 0.0876×0.2628 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2628×0.2628 mm (H×V) [96PPI] | |
| Mechanical Size : | Display Area | 672.768×283.824 mm (H×V) | Bezel Area | - |
| Outline Dim. | 693.6×308.9 mm (H×V) | Outline Depth | 11.0/17.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 21:9 (H:V) | Shape Style | 3-side borderless | |
| Holes & Brackets : | Rear mounting holes | |||
| Other Features : | Weight | 3.12/3.28Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 99% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 17S4P | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 51.3±3.4V | Current Input | 100/105mA (Typ./Max.) | ||
| Consumption | 24.0/21.8W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM06B-SHJH(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Signal Systerm : | LVDS (4 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 10.0V (Typ.) | Current Input | 530±130mA | ||
| Consumption | 5.3/6.6W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| LS Mtron | GT05P-51S-H38-E1500 | 0.5 mm | 51 pins | 1 pcs | ||
| LS Mtron | GT05P-41S-H38-E1500 | 0.5 mm | 41 pins | 1 pcs | ||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 14 pcs / box | - | 814×542×400 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
