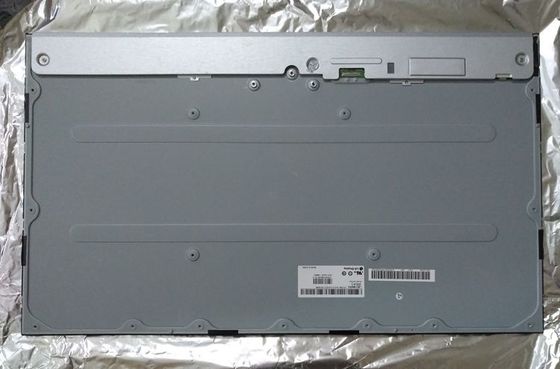

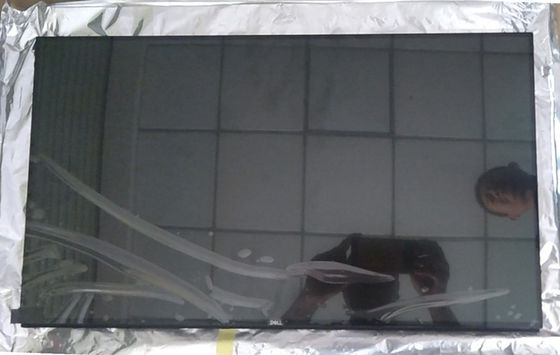

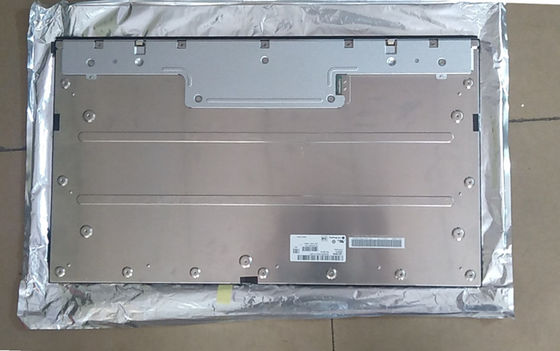

Product Details:
|
| MODEL NUMBER: | LM270WR4-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160, UHD, 163PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LM270WR4-SSA1 Lcd Video Module,3840×2160 Industrial TFT Display,VGA Touch Lcd Video Display |
||
| Basic Information : | Brand | Model | LM270WR4-SSA1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 27.0" | Alias | LM270WR4 (SS)(A1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 3840(RGB)×2160, UHD | Dot Pitch(mm) | 0.0518×0.1554 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1554×0.1554 (H×V) [163PPI] | |
| Mechanical Size : | Active Area(mm) | 596.74(H) × 335.66(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 608.8(H) × 355.3(V) | Depth(mm) | 11.9/15.3 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | 3-side borderless |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (10-M3) | |||
| Other Spec : | Weight | TBD | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 104% | sRGB | 100% coverage |
| Adobe RGB | 100% coverage | DCI-P3 | 95% coverage | |
| Rec.2020 | 78% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 10.0V (Typ.) | Current Supply | 660/825mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 6.6/8.25W (Typ./Max.) | |||||
| Signal Type : | eDP (4 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 30 pins | 0.5 mm | EDP-30P4L-050A | |
| Backlight Features: | Shape | 6 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 41.5/44.6/47.6V (Min./Typ./Max.) | Current Supply | 140/145mA (Typ | ||
| Consumption | 37.4/39.9W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | 10035WR-H06B | 2 pcs | 6 pins | 1.0 mm | BLE-6PINS-CNAACC | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
