Product Details:
|
| MODEL NUMBER: | LM270WFC-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 (FHD) 81PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LM270WFC-SSA1 Lcd Video Module,WVGA Industrial TFT Display,VGA 27.0" Lcd Video Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|

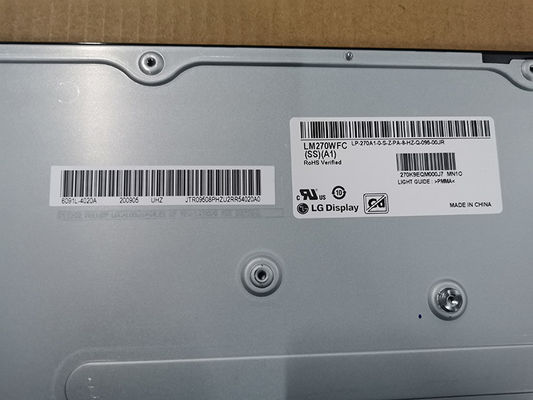

| LM270WFC-SSA1 | a-Si TFT-LCD , LCM | LM270WFC (SS)(A1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 80% | 100% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 83% | 60% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
| Panel Size : | 27.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1080 [FHD] | RGB Vertical Stripe | 0.3114×0.3114 [81PPI] | 0.1038×0.3114 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 597.888(H) × 336.312(V) | - | 608.6(H) × 348.3(V) | 12.7 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape / Portrait | 16:9 (H:V) | 4-side borderless | |

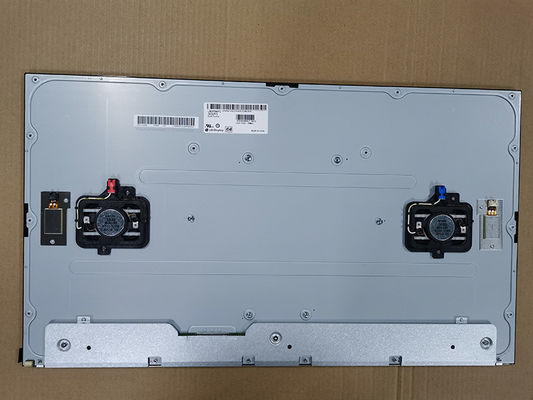

| Mounting : | Rear mounting holes | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 2.95/3.10Kgs (Typ./Max.) | - | Glare (Haze 0%), Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | - | - | 3K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 52.6±3.8V | 45/50mA (Typ./Max.) | 9.5/10.2W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| No | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| YEONHO | 10035WS-H06D | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 500/630mA (Typ./Max.) | 2.5/3.15W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (2 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| UJU | IS100-L30O-C23 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160B | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
