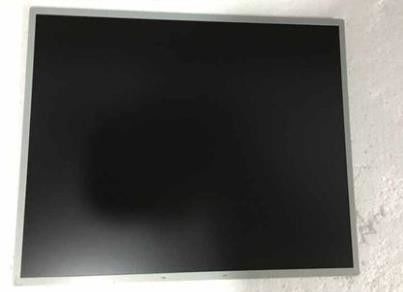

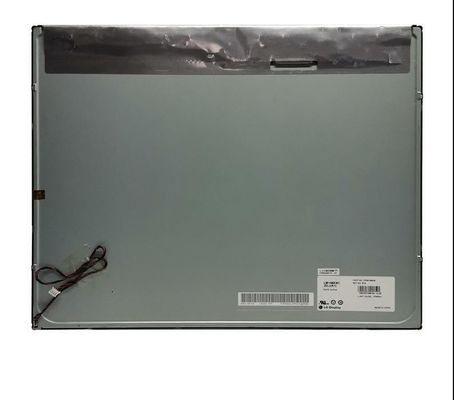

Product Details:
|
| MODEL NUMBER: | LM190E0C-SLA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 19.0 Inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×1024, SXGA, 86PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | LM190E0C-SLA1 TFT LCD Panel,WVGA Industrial TFT Display,VGA Touch Lcd Video Display |
||
| Basic Detail : | Manufacturer | Model Name | LM190E0C-SLA1 | |
|---|---|---|---|---|

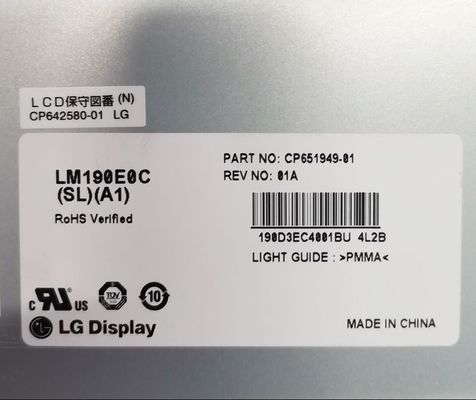

| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM190E0C (SL)(A1) | |
| Panel Size | 19.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.0G (9.8 m/s²) | RoHS |
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AH-IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1280(RGB)×1024 [SXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.098×0.294 mm | Pixel Pitch(W×H) | 0.294×0.294 mm [86PPI] | |
| Physical Size : | Active Viewing | 376.32(W)×301.056(H) mm | Overall Dim. | 396(W)×324(H) mm |
| Bezel Opening | 380.3(W)×305.0(H) mm | Overall Depth | 8.7/10.4 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 5:4 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.70Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 640/800mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 3.2/4.0W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | IS100-L30O-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
| Lamp Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Position | Edge light type (Right side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 15S2P | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 80/85mA (Typ./Max.) | Input Voltage | 45.0±3.0V | ||
| Consumption | 7.2/7.7W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SHJH(HF) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CNAANC | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 14 pcs / box | 418×365×492 mm | - |
