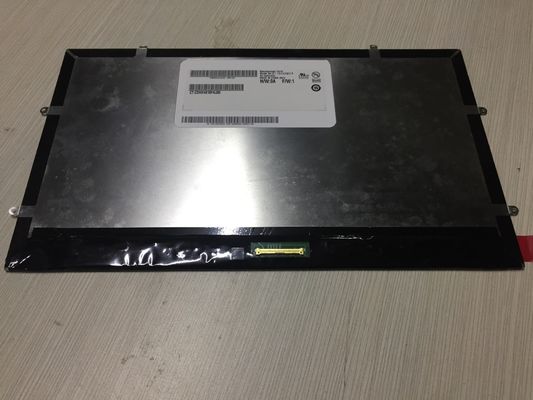

Product Details:
|
| MODEL NUMBER: | LP116WH4-SLN1 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | RESOLUTION: | 1366(RGB)×768, WXGA, 135PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 400CD/M2 |
| SIZE: | 11.6 Inch | BRAND: | LG DISPLAY |
| High Light: | LP116WH4-SLN1 TFT LCD Panel,1366×768 Industrial TFT Display,VGA Touch Lcd Video Display |
||

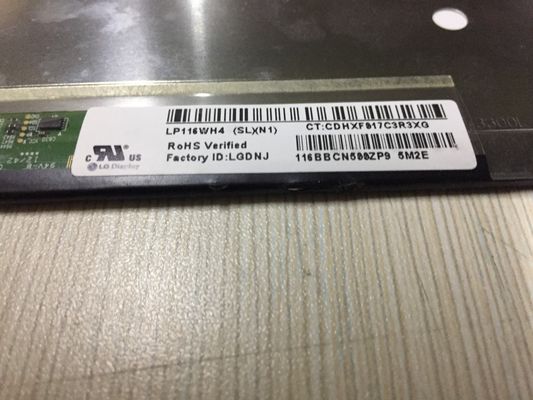

| Basic Information : | Brand | Model | LP116WH4-SLN1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 11.6" | Alias | LP116WH4 (SL)(N1), LGD039E | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1366(RGB)×768, WXGA | Dot Pitch(mm) | 0.0625×0.1875 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1875×0.1875 (H×V) [135PPI] | |
| Mechanical Size : | Active Area(mm) | 256.125(H) × 144(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 279(H) × 163.8(V) | Depth(mm) | 2.5/4.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (6 pcs) on left, right, up slugs | |||
| Other Spec : | Weight | 200g (Max.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Typ./Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 165/190mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.6/0.7W (Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| LS Mtron | GT05Q-40S-H10 | 1 pcs | 40 pins | 0.5 mm | LVDS-40P1C8B-020A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 210/225mA (Typ./Max.) | ||
| Consumption | 2.5/2.7W (Typ./Max.) | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
