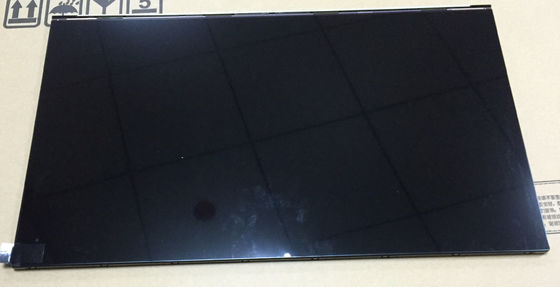

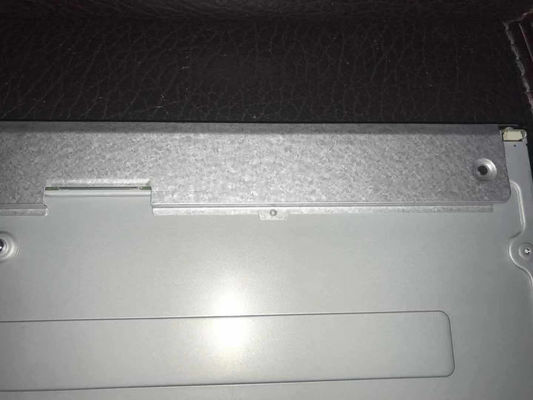

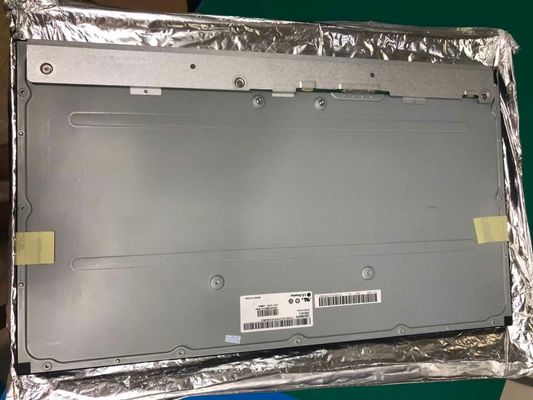

LM215WF9-SSA1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

LM215WF9-SSA1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
LM215WF9-SSA1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY LM215WF9-SSA1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY LM215WF9-SSA1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY LM215WF9-SSA1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LM215WF9-SSA1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM215WF9-SSA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS

LM215WF9-SSA1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM215WF9-SSA1 BRAND: LG DISPLAY
SIZE: 21.5 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 [FHD] 102PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

LM215WF9-SSA1 TFT LCD Panel

,

WVGA Industrial TFT Display

,

VGA Touch Lcd Video Display

LG Display LM215WF9-SSA1 Application Features

Basic Information : Brand Model Type Model Alias

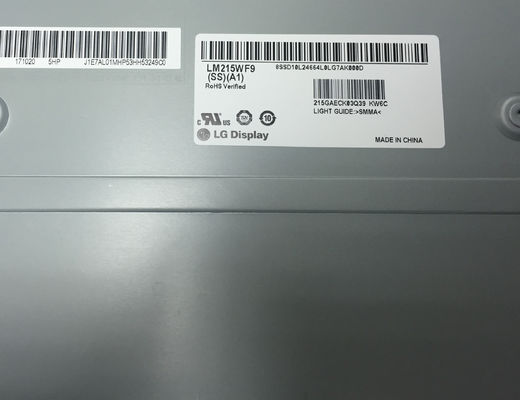

  LM215WF9-SSA1 a-Si TFT-LCD , LCM LM215WF9 (SS)(A1)
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  0 ~ 50 °C -20 ~ 60 °C



LG Display LM215WF9-SSA1 Mechanical Features

Panel Size : 21.5 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.08265×0.24795 mm 0.24795×0.24795 mm [102PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
476.064×267.786 mm - 484.5×284.4 mm 8.55/12.7 (Typ./Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:9 (W : H) Landscape type 3-side borderless
Fixation : Rear mounting holes (13-M3)
Other Features : Panel Cover Weight Surface
- 1.59/1.67Kgs (Typ./Max.) Antiglare (Haze 25%), Hard coating (3H)



LG Display LM215WF9-SSA1 Mechanical Features

Panel Size : 21.5 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.08265×0.24795 mm 0.24795×0.24795 mm [102PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
476.064×267.786 mm - 484.5×284.4 mm 8.55/12.7 (Typ./Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:9 (W : H) Landscape type 3-side borderless
Fixation : Rear mounting holes (13-M3)
Other Features : Panel Cover Weight Surface
- 1.59/1.67Kgs (Typ./Max.) Antiglare (Haze 25%), Hard coating (3H)



LG Display LM215WF9-SSA1 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
600/738mA (Typ./Max.) 5.0V (Typ.) 3.0/3.75W (Typ./Max.)
Interface Features : Position Type Interface
  Connector LVDS (2 ch, 8-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
UJU IS100-L30O-C23 1 pcs 1.0 mm 30 pins LVDS-30P2C8B-160B



LG Display LM215WF9-SSA1 Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type (Bottom side) 4 strings 13S4P 30K(Min.) -
WLED Electrical : Current Input Voltage Input Consumption
55/60mA (Typ./Max.) 37.4±2.6V 8.2/8.8W (Typ./Max.)
Interface Features : Position Type WLED Driver
  Connector No
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
  10035WS-H06D(HF) 1 pcs   6 pins BLE-6PINS-CCAACC



LG Display LM215WF9-SSA1 Packing Features

Package Carton : Amount Weight Carton Size
9 pcs / box - 553×315×360 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
