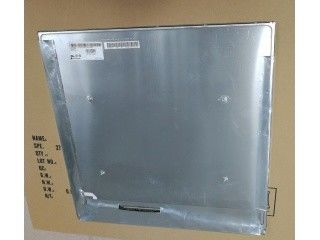

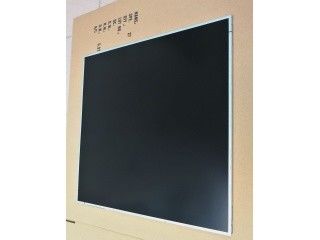

Product Details:
|
| MODEL NUMBER: | LM265SQ1-SLA1 | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | RESOLUTION: | 1920(RGB)×1920, 102PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 300CD/M2 |
| SIZE: | 26.5 Inch | BRAND: | LG DISPLAY |
| High Light: | LM265SQ1-SLA1 TFT LCD Panel,WVGA Industrial TFT Display,VGA Touch Lcd Video Display |
||
| Basic Info : | Panel Brand | Panel Model | LM265SQ1-SLA1 | |
|---|---|---|---|---|
| Diagonal Size | 26.5" | Application |
|
|

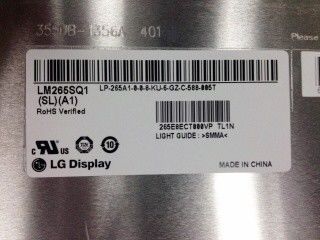

| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM265SQ1 (SL)(A1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×1920 | Dot Pitch | 0.0826×0.2478 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2478×0.2478 mm (H×V) [102PPI] | |
| Mechanical Size : | Display Area | 475.776×475.776 mm (H×V) | Bezel Area | 479.0×479.0 mm (H×V) |
| Outline Dim. | 491.8×491.8 mm (H×V) | Outline Depth | 8.4/13.1 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 1:1 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes | |||
| Videowall Seam : | 16.0 mm (Active to Active) | |||
| Other Features : | Weight | 2.21Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 76% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type (Left side) | |
| Lamp Electrical : | Voltage Input | 45.8±3V | Current Input | 120mA (Typ.) | ||
| Consumption | 22/23.4W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BM06B-SHJS-TB(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Signal Systerm : | LVDS (4 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 10V (Typ.) | Current Input | 610/760mA (Typ./Max.) | ||
| Consumption | 6.1/7.6W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| LS Mtron | GT05P-51S-H38-E1500 | 0.5 mm | 51 pins | 1 pcs | ||
| LS Mtron | GT05P-41S-H38-E1500 | 0.5 mm | 41 pins | 1 pcs | ||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 10 pcs / box | - | 562×362×560 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
