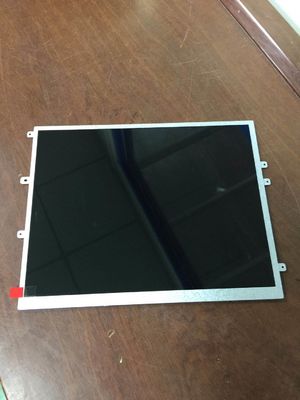

Product Details:
|
| MODEL NUMBER: | LP097X02-SLA3 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | RESOLUTION: | 1024(RGB)×768 (XGA) 132PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 400CD/M2 |
| SIZE: | 9.7INCH | BRAND: | LG DISPLAY |
| Highlight: | LP097X02-SLA3 TFT LCD Panel,WVGA Industrial TFT Display,VGA Touch Lcd Video Display |
||
| Basic Detail : | Manufacturer | Model Name | LP097X02-SLA3 10 Compatible | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LP097X02 (SL)(A1) | |
| Panel Size | 9.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Typ./Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 48% | sRGB | 67% coverage |
| Adobe RGB | 50% coverage | DCI-P3 | 50% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.064×0.192 mm | Pixel Pitch(W×H) | 0.192×0.192 mm [132PPI] | |
| Physical Size : | Active Viewing | 196.608(W)×147.456(H) mm | Overall Dim. | 210.53(W)×166.53(H) mm |
| Bezel Opening | 201.40(W)×152.26(H) mm | Overall Depth | 3.55/5.82 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (8 pcs) on left, right, down slugs | |||
| Other Detail : | Mass | 160g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H), Antireflection |
| Signal Electrical : | Input Current | 240/280mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.8/0.92W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20474-030E-12 | 1 pcs | 0.4 mm | 30 pins | LVDS-30P1C6B-070B | |
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6S6P | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 5/20/25mA (Min./Typ./Max.) | Input Voltage | |||
| Consumption | 2.1/2.6W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
