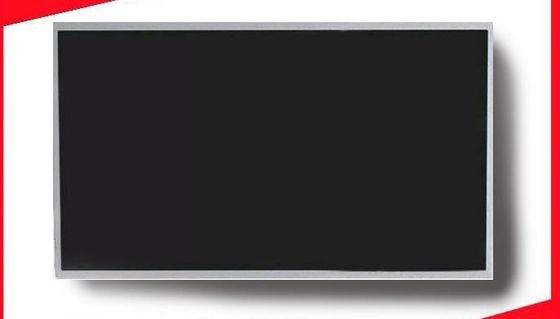

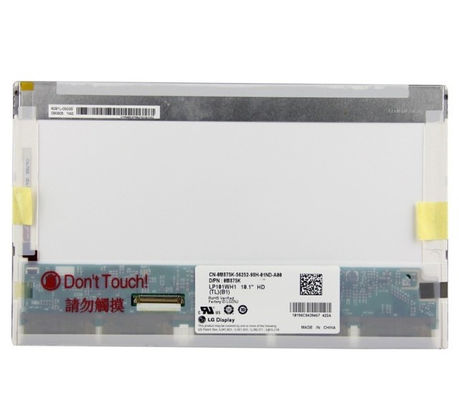

Product Details:
|

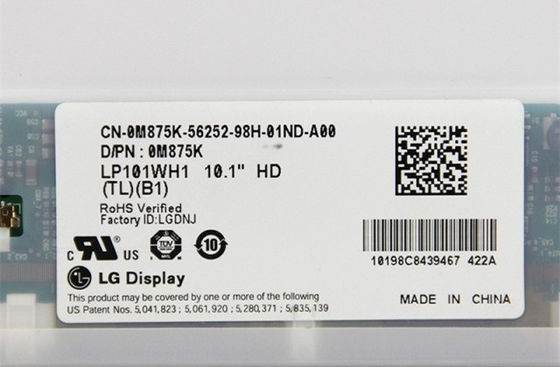

| MODEL NUMBER: | LP101WH1-TLA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 10.1INCH | BRIGHTNESS: | 200CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768 [WXGA] 155PPI |
| VIEWING ANGLEG: | 30/30/10/20 (Min.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | LP101WH1-TLA1 TFT LCD Panel,1366×768 Industrial TFT Display,VGA Touch Lcd Video Display |
||
| Basic Information : | Brand | Model 3 Compatible | Type | Model Alias |
|---|---|---|---|---|
| LP101WH1-TLA1 | a-Si TFT-LCD , LCM | LP101WH1 (TL)(A1), LGD0207 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 10.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.05435×0.16305 mm | 0.16305×0.16305 mm [155PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 222.73×125.22 mm | 226.0×128.7 mm | 235×143 mm | 5.2 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Wedge (PCBA Bent, T≥5.2mm) | |
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 200g (Max.) | Glare (Haze 0%) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Min.) | TN, Normally White, Transmissive | 400:1 (Min.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 30/30/10/20 (Min.)(CR≥10) | 6 o'clock | 16 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 56% | 78% | 59% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 59% | 42% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.40/1.60 (Typ./Max.)(13 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 350/402mA (Typ./Max.) | 3.3V (Typ.) | 1.16/1.33W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (1 ch, 6-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-040E-12 | 1 pcs | 0.5 mm | 40 pins | LVDS-40P1C6B-060P | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 9S4P | 15K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20mA (Typ.) | 28.8/31.5V (Typ./Max.) | 2.3/2.52W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| - | 6.5/21.0V (Min./Max.) | 2.51/2.77W (Typ./Max.) | ||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
