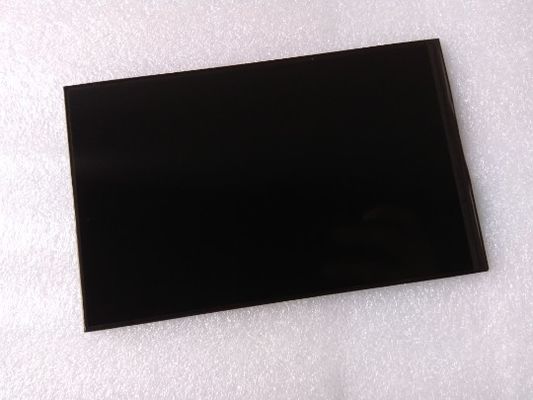

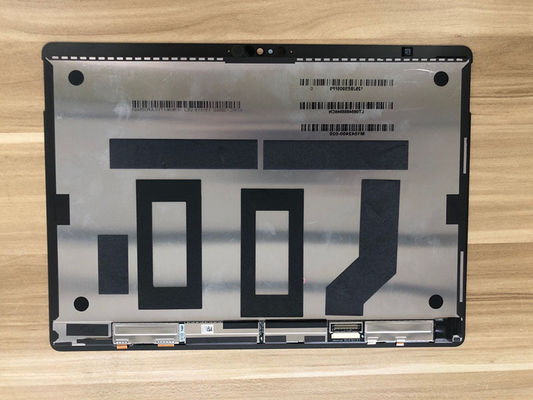

Product Details:
|
| MODEL NUMBER: | LP129QE1-SPA1 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 80/80/80/80 (Typ.)(CR≥10) | RESOLUTION: | 2560(RGB)×1700 239PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 400CD/M2 |
| SIZE: | 12.9INCH | BRAND: | LG DISPLAY |
| High Light: | LP129QE1-SPA1 TFT LCD Panel,WVGA Industrial TFT Display,VGA Touch Lcd Video Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LP129QE1-SPA1 | a-Si TFT-LCD , LCM | LP129QE1 (SP)(A1), LGD0379 | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 12.9" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 2560(RGB)×1700 | RGB Vertical Stripe | 0.0354×0.1062 mm | 0.1062×0.1062 mm [239PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 271.9×180.5 mm | 275.10×184.85 mm | 283.3×195 mm | 2.95 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 15:10 | Landscape type | Slim (PCBA Flat, T≤3.2mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 265g (Max.) | - | Hard coating | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | AH-IPS, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6551K | 16.7M (8-bit) | X:0.310; Y:0.340 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 60% | 83% | 63% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 63% | 45% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.15/1.35 (Typ./Max.)(15 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 15K(Typ.) | - | 8 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 42V (Max.) | 18.5mA (Typ.) | 5.57W (Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 1.20A (Max.) | 4.0W (Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP (4 Lanes) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20474-040E-12 | 1 pcs | 40 pins | 0.4 mm | ||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 30 pcs / box | - | 478×365×288 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
