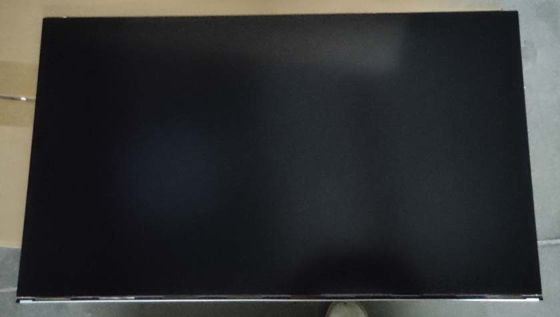

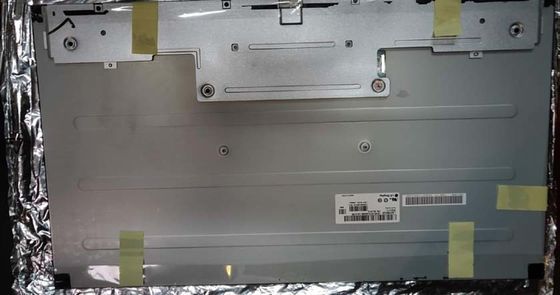

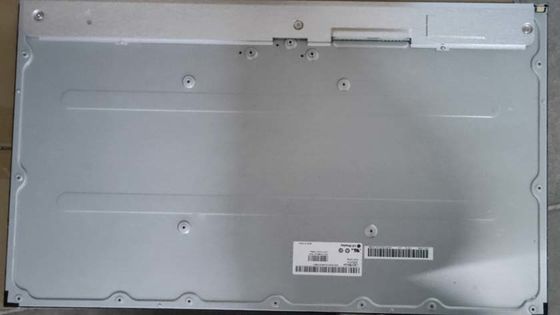

Product Details:
|
| MODEL NUMBER: | LM270WR5-SSC1 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | RESOLUTION: | 3840(RGB)×2160 (UHD) 163PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 350CD/M2 |
| SIZE: | 27.0INCH | BRAND: | LG DISPLAY |
| High Light: | LM270WR5-SSC1 TFT LCD Panel,WVGA Industrial TFT Display,VGA Touch Lcd Video Display |
||
| Basic Info : | Panel Brand | Panel Model | LM270WR5-SSC1 | |
|---|---|---|---|---|
| Diagonal Size | 27.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM270WR5 (SS)(C1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.0G (9.8 m/s²) |
| Pixel Features : | Pixel Format | 3840(RGB)×2160 [UHD] | Dot Pitch | 0.0518×0.1554 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1554×0.1554 mm (H×V) [163PPI] | |
| Mechanical Size : | Display Area | 596.74×335.66 mm (H×V) | Bezel Area | - |
| Outline Dim. | 608.6×349 mm (H×V) | Outline Depth | 9.3/13.3 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | 4-side borderless | |
| Holes & Brackets : | Rear mounting holes | |||
| Other Features : | Weight | 2.27/2.38Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 78% | sRGB | 100% coverage |
| Adobe RGB | 79% coverage | DCI-P3 | 81% coverage | |
| Rec.2020 | 58% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 4 strings | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 45.3/48.5/51.7V (Min./Typ./Max.) | Current Input | 130/135mA (Typ./Max.) | ||
| Consumption | 25.2/26.9W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 10035WR-H06D(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Signal Systerm : | eDP (4 Lanes) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 10V (Typ.) | Current Input | 0.66/0.83A (Typ./Max.) | ||
| Consumption | 6.6/8.25W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 0.5 mm | 30 pins | 1 pcs | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
