Product Details:
|
MODEL NUMBER: | LP156WFC-SPU1 | BRAND: | LG DISPLAY |
---|---|---|---|
SIZE: | 15.6 Inch | BRIGHTNESS: | 500CD/M2 |
Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 (FHD) 141PPI |
VIEWING ANGLEG: | 80/80/80/80 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
High Light: | LP156WFC-SPU1 Industrial Lcd Panel,WLED Lamp LCD Display Panels,TFT LCD Display SVGA 119PPI |
Basic Information : | Brand | Model 4 Compatible | Type | Model Alias |
---|---|---|---|---|
LP156WFC-SPU1 | a-Si TFT-LCD , LCM | LP156WFC (SP)(U1), LGD0630 | ||
Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
0 ~ 50 °C | -20 ~ 60 °C |
Panel Size : | 15.6 inch | |||
---|---|---|---|---|
Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.05975×0.17925 mm | 0.17925×0.17925 mm [141PPI] | |
Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
344.16×193.59 mm | - | 350.66×205.84 mm | 2.4/4.25 (Typ./Max.) mm | |
Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
Flat Rectangle | 16:9 (W : H) | Landscape type | Slim (PCBA Bent, T≤3.0mm) | |
Fixation : | Without | |||
Other Features : | Panel Cover | Weight | Surface | |
- | 290g (Max.) | Glare (Haze 0%) |
Basic Information : | Brightness | Operating Mode | Contrast Ratio |
---|---|---|---|
500 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1400:1 (Typ.) (Transmissive) | |
Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
80/80/80/80 (Min.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) | |
Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
71% | 99% | 73% | |
DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Luminance Variation : | 1.25/1.67 (Max.)(5/13 points) |
Signal Electrical : | Current Input | Voltage Input | Consumption | |||
---|---|---|---|---|---|---|
219/273mA (Typ./Max.) | 3.3V (Typ.) | 0.72/0.9W (Typ./Max.) | ||||
Interface Features : | Position | Type | Interface | |||
Connector | eDP (2 Lanes), HBR1 (2.7G/lane) | |||||

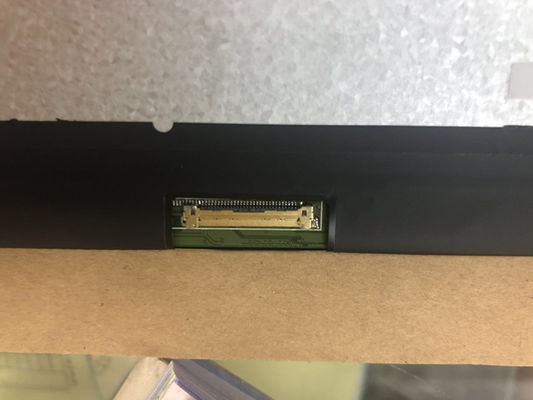

Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
HRS | KN38B-30S-0.5H | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020A |
Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
---|---|---|---|---|---|---|
WLED | Edge light type | - | - | 15K(Min.) | - | |
Interface Features : | Position | Type | WLED Driver | |||
- | Included in panel signal interface | With LED Driver | ||||
Driver Electrical : | Current Input | Voltage Input | Consumption | |||
313/329mA (Typ./Max.) | 5.0/12.0/21.0V (Min./Typ./Max.) | 3.75/3.95W (Typ./Max.) |
Package Carton : | Amount | Weight | Carton Size |
---|---|---|---|
28 pcs / box | - | 427×327×328 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
