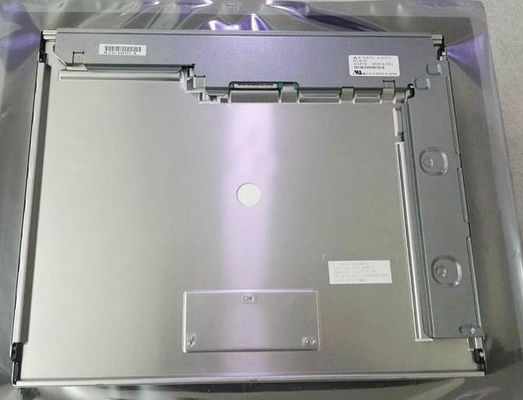

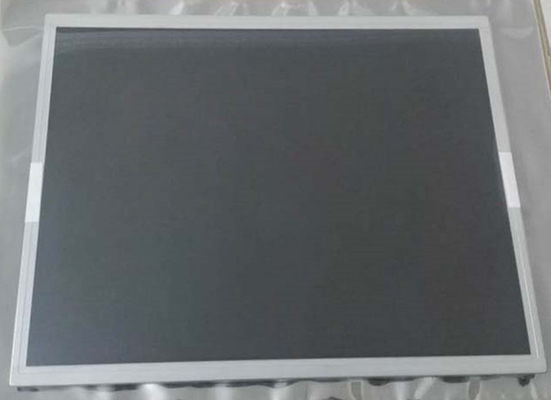

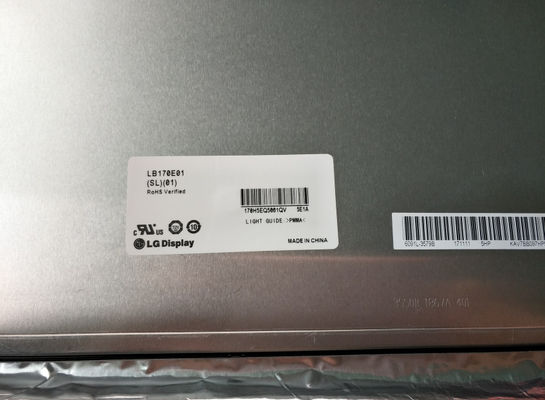

LB170E01-SL01 LG Display 17.0" 1280(RGB)×1024 400 cd/m² INDUSTRIAL LCD DISPLAY

LB170E01-SL01 LG Display 17.0" 1280(RGB)×1024 400 cd/m² INDUSTRIAL LCD DISPLAY
LB170E01-SL01 LG Display 17.0" 1280(RGB)×1024 400 cd/m² INDUSTRIAL LCD DISPLAY LB170E01-SL01 LG Display 17.0" 1280(RGB)×1024 400 cd/m² INDUSTRIAL LCD DISPLAY LB170E01-SL01 LG Display 17.0" 1280(RGB)×1024 400 cd/m² INDUSTRIAL LCD DISPLAY LB170E01-SL01 LG Display 17.0" 1280(RGB)×1024 400 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LB170E01-SL01 LG Display 17.0" 1280(RGB)×1024 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LB170E01-SL01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 800PCS
Contact Now

LB170E01-SL01 LG Display 17.0" 1280(RGB)×1024 400 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LB170E01-SL01 TEMPERATURE RANGE: Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) RESOLUTION: 1280(RGB)×1024, SXGA, 96PPI
Lamp Type: WLED BRIGHTNESS: 400CD/M2
SIZE: 17.0INCH BRAND: LG DISPLAY
High Light:

LB170E01-SL01 TFT LCD Panel

,

1280×1024 LCD Display Panels

,

TFT LCD Display SVGA 119PPI

LG Display LB170E01-SL01 Application Details

Basic Information :
Brand

LB170E01-SL01Model
Type
a-Si TFT-LCD , LCM
Used For






  •
  •
  •
Screen Size
17.0 inch
Alias
LB170E01 (SL)(01)
Environment :
Storage Temp.
-20 ~ 80 °C
Operating Temp.
-10 ~ 70 °C
RoHS

1.0G (9.8 m/s²)Vibration



LG Display LB170E01-SL01 Mechanical Details

Pixel Features :
Resolution
1280(RGB)×1024, SXGA
Dot Pitch(mm)
0.088×0.264 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.264×0.264 (H×V) [96PPI]
Mechanical Size :
Active Area(mm)
337.92(H) × 270.336(V)
Bezel Area(mm)
341.5(H) × 274.6(V)
Outline Dim.(mm)
368(H) × 306(V)
Depth(mm)
14.8 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
5:4 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
1.26Kgs (Typ.)
Treatment
Antiglare, Hard coating (3H)



LG Display LB170E01-SL01 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
14 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.310; Wy:0.338
Display Colors
16.7M (8-bit)
Color Temperature
6568K
White Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
93% coverage
Adobe RGB
72% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LB170E01-SL01 Interface Detail

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
520/676mA (Typ./Max.)
Consumption
2.6/3.38W (Typ./Max.)
Signal Type :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
LS Mtron
GT103-30S-H23
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160A



LG Display LB170E01-SL01 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type (Bottom side)
Replacement
-
Shape
-
Life Time
50K(Min.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
YEONHO
10031HR-H06
1.0 mm
6 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0±0.5V
Current Supply
1.05/1.16A (Typ./Max.)
Consumption
12.6/13.86W (Typ./Max.)

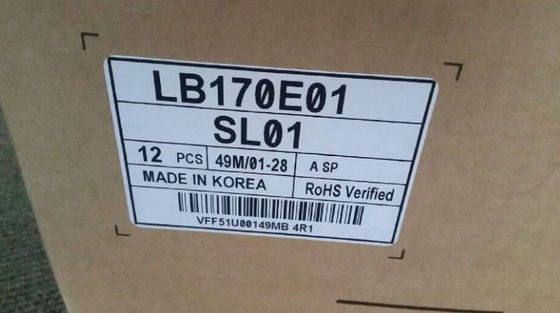

LG Display LB170E01-SL01 Packing Details

Package Box : Quantity Weight Box Size
12 pcs / box - 365×315×492 mm (L×W×H)
